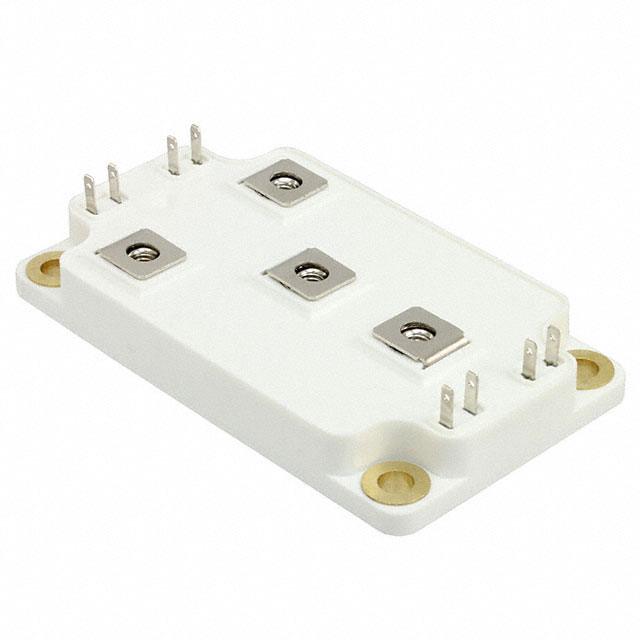

APTGLQ200HR120G
IGBT MODULE 1200V 300A 1000W SP6Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology APTGLQ200HR120G is a high-performance Trench Field Stop Insulated Gate Bipolar Transistor (IGBT) module designed for demanding power conversion applications. This module features a robust 1200V collector-emitter breakdown voltage and a substantial 300A continuous collector current capability, with a maximum power dissipation of 1000W. The Vce(on) is rated at 2.4V maximum at 15V gate-emitter voltage and 160A collector current, ensuring efficient operation. Its input capacitance (Cies) is 9.2 nF at 25V. The module utilizes a through-hole mounting style within the SP6 package, facilitating straightforward integration into existing board designs. Operating across a wide temperature range of -40°C to 175°C (TJ), it is suitable for various industrial environments including motor drives, industrial power supplies, and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP6 |
| Mounting Type | Through Hole |
| Input | Standard |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 160A |
| NTC Thermistor | No |
| Supplier Device Package | SP6 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 300 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 1000 W |
| Current - Collector Cutoff (Max) | 200 µA |
| Input Capacitance (Cies) @ Vce | 9.2 nF @ 25 V |
