APTGLQ200H120G

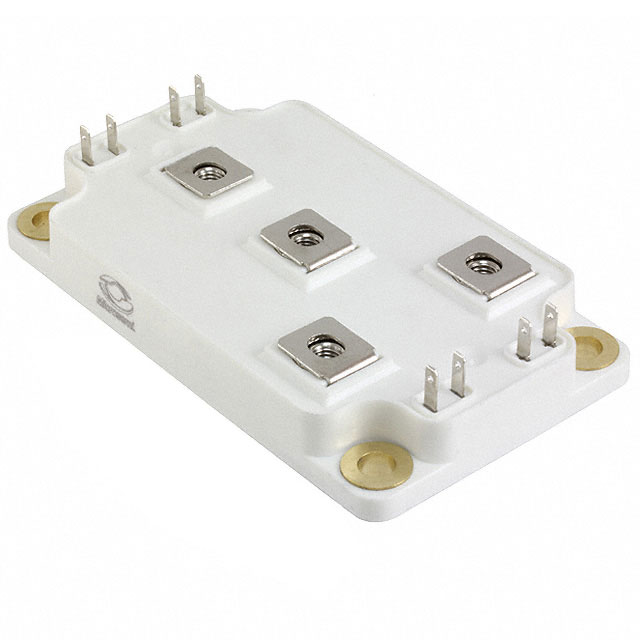

IGBT MODULE 1200V 350A 1000W SP6Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
The Microchip Technology APTGLQ200H120G is a Trench Field Stop IGBT Module featuring a full bridge configuration. This chassis mount component offers a 1200V collector-emitter breakdown voltage and a maximum collector current of 350A. It is rated for 1000W maximum power dissipation and exhibits a Vce(on) of 2.4V at 15V Vge and 200A Ic. The module has an input capacitance (Cies) of 12.3 nF at 25V and an operating temperature range of -40°C to 175°C (TJ). This device is suitable for high-power applications in industries such as industrial motor drives, electric vehicle powertrains, and renewable energy systems. The package type is SP6.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP6 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Full Bridge |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 200A |
| NTC Thermistor | No |
| Supplier Device Package | SP6 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 350 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 1000 W |
| Current - Collector Cutoff (Max) | 100 µA |
| Input Capacitance (Cies) @ Vce | 12.3 nF @ 25 V |
