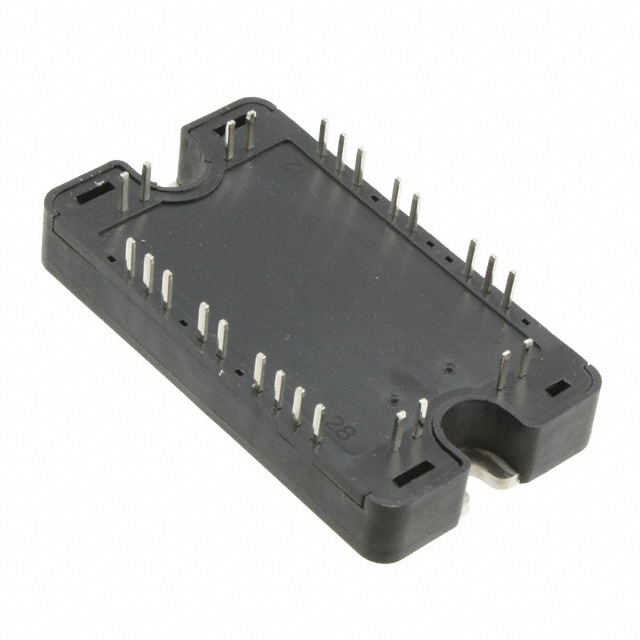

APTGLQ100A120T3AG
IGBT MODULE 1200V 185A 650W SP3Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology's APTGLQ100A120T3AG is a Trench Field Stop IGBT module featuring a half-bridge configuration. This component is rated for 1200 V collector-emitter breakdown voltage and a continuous collector current of 185 A. It offers a maximum power dissipation of 650 W and a low on-state voltage (Vce(on)) of 2.4 V at 15 V gate-emitter voltage and 100 A collector current. The module includes an integrated NTC thermistor for temperature monitoring and is housed in an SP3 package suitable for through-hole mounting. Key electrical characteristics include an input capacitance (Cies) of 6.15 nF at 25 V. Operating temperatures range from -40°C to 175°C (TJ). This device is commonly utilized in industrial applications such as motor drives, power supplies, and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP3 |
| Mounting Type | Through Hole |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 100A |
| NTC Thermistor | Yes |
| Supplier Device Package | SP3 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 185 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 650 W |
| Current - Collector Cutoff (Max) | 50 µA |
| Input Capacitance (Cies) @ Vce | 6.15 nF @ 25 V |
Request a Quote
Clients Also Buy
APTGT30TL601G
IGBT MODULE 600V 50A 90W SP1
APTGT100DA120T1G
IGBT MODULE 1200V 140A 480W SP1

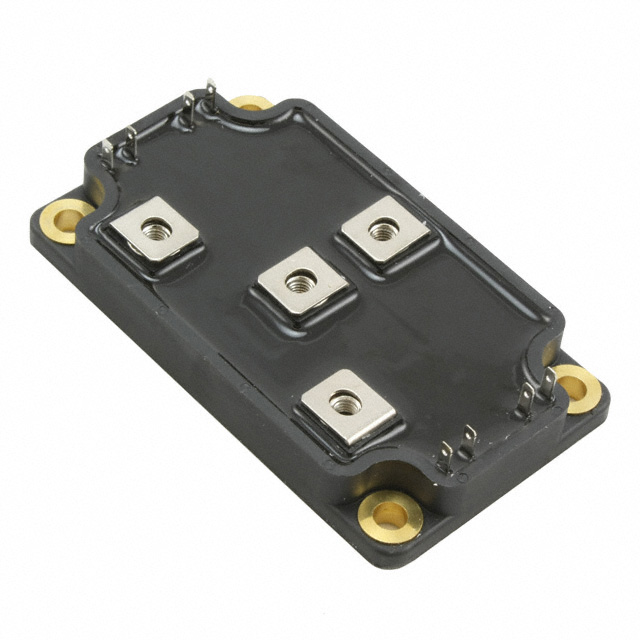

APTGT150TL60G
