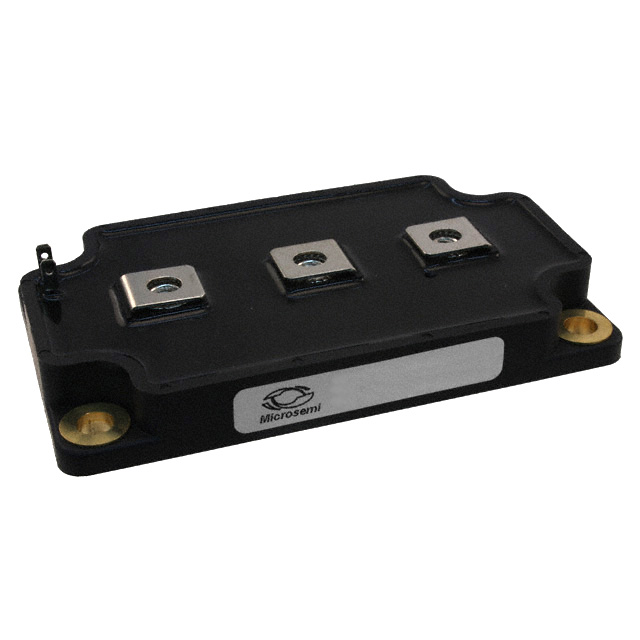

APTGL700U120D4G
IGBT MODULE 1200V 910A 3000W D4Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology's APTGL700U120D4G is a Trench Field Stop IGBT module designed for high-power applications. This single-configuration module features a 1200V collector-emitter breakdown voltage and a maximum collector current of 910A, with a power dissipation rating of 3000W. The Vce(on) is specified at 2.2V maximum at 15V Vge and 600A Ic. Input capacitance (Cies) is 37.2 nF at 25V. The module is chassis mountable in a D4 package, suitable for demanding thermal environments with an operating temperature range of -40°C to 175°C. This component is utilized in industrial automation, power conversion, and electric vehicle powertrains.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | D4 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 600A |
| NTC Thermistor | No |
| Supplier Device Package | D4 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 910 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 3000 W |
| Current - Collector Cutoff (Max) | 4 mA |
| Input Capacitance (Cies) @ Vce | 37.2 nF @ 25 V |
