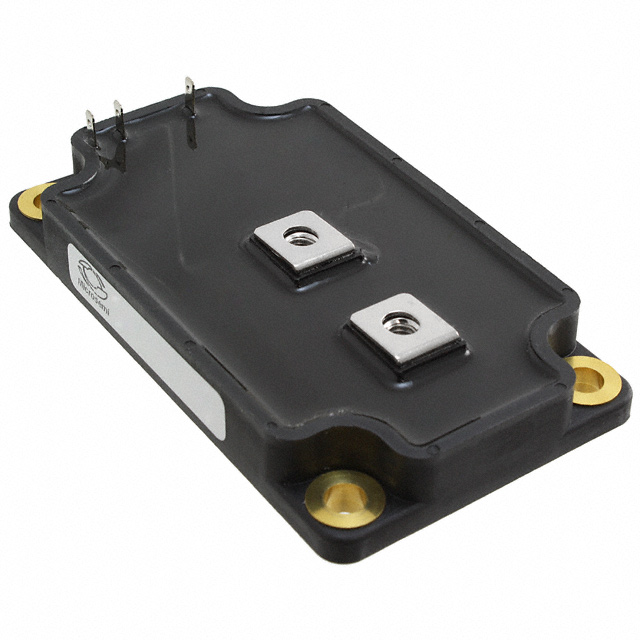

APTGL700DA120D3G
IGBT MODULE 1200V 840A 3000W D3Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology APTGL700DA120D3G is a Trench Field Stop IGBT Module designed for high-power applications. This single-configuration module features a 1200 V collector-emitter breakdown voltage and a maximum collector current (Ic) of 840 A. It offers a low on-state voltage (Vce(on)) of 2.2V at 15V gate-emitter voltage and 600A collector current, with a maximum power dissipation of 3000 W. The module utilizes a D3 package for chassis mounting, enabling efficient thermal management. Typical applications include industrial motor drives, electric vehicle powertrains, and renewable energy systems. It operates within an ambient temperature range of -40°C to 175°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 600A |
| NTC Thermistor | No |
| Supplier Device Package | D3 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 840 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 3000 W |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 37.2 nF @ 25 V |
Request a Quote
Clients Also Buy

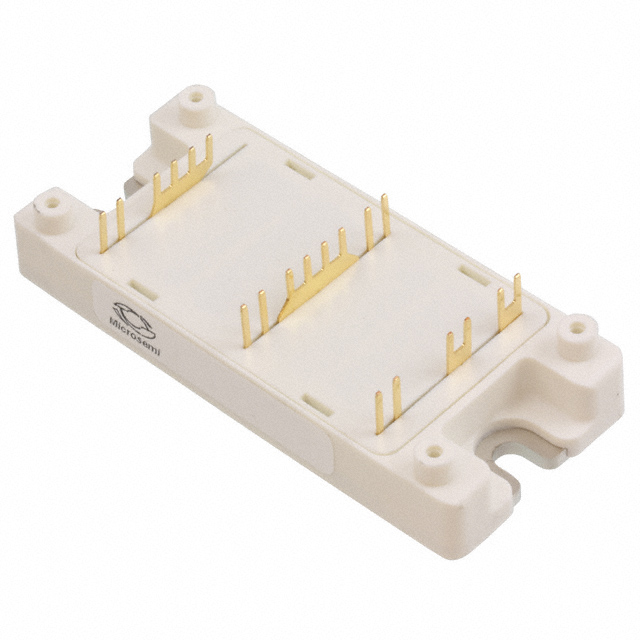

APTGF100A120TG
