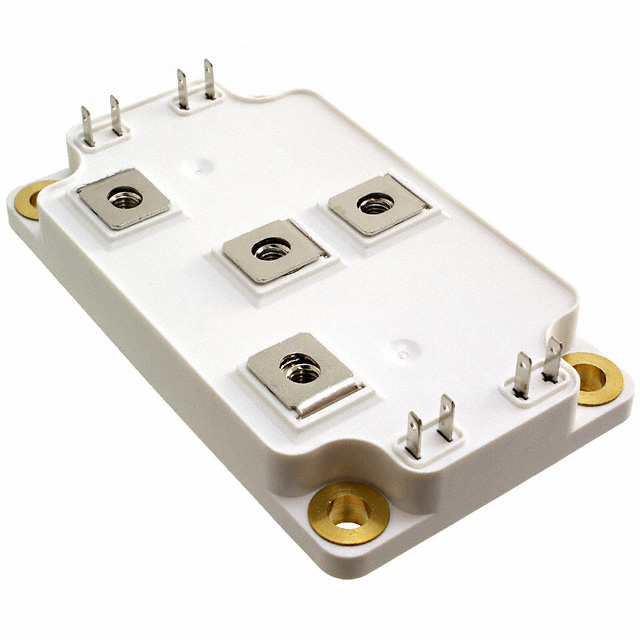

APTGL240TL120G
IGBT MODULE 1200V 305A 1000W SP6Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology APTGL240TL120G is a Trench Field Stop IGBT module designed for high-power applications. This module features a 1200 V collector-emitter breakdown voltage and a robust 305 A collector current capability, delivering up to 1000 W of power. The three-level inverter configuration and SP6 package facilitate efficient power conversion and thermal management through chassis mounting. Key electrical characteristics include a maximum Vce(on) of 2.2V at 15V Vge and 200A Ic, with a low collector cutoff current of 2 mA. Input capacitance (Cies) is 12.3 nF @ 25 V. This component is suitable for demanding applications in industries such as industrial automation, renewable energy, and electric vehicle powertrains, operating across a temperature range of -40°C to 175°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP6 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 200A |
| NTC Thermistor | No |
| Supplier Device Package | SP6 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 305 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 1000 W |
| Current - Collector Cutoff (Max) | 2 mA |
| Input Capacitance (Cies) @ Vce | 12.3 nF @ 25 V |
Request a Quote
Clients Also Buy
APTGT400SK120G
IGBT MODULE 1200V 560A 1785W SP6
APT200GN60J
IGBT MOD 600V 283A 682W ISOTOP

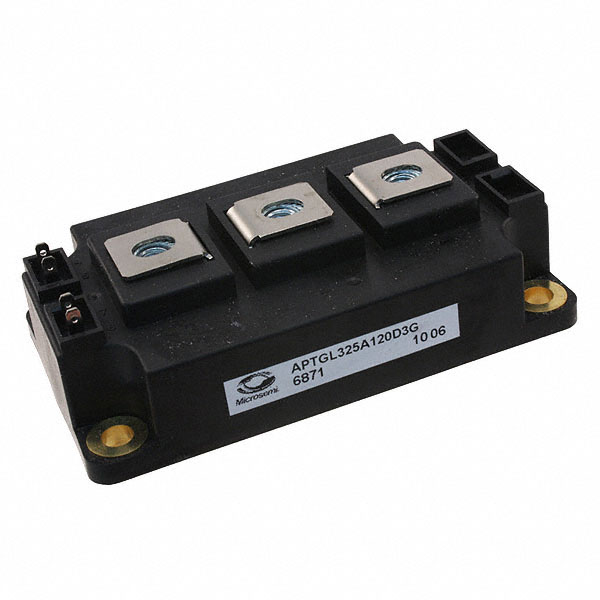

APTGL325A120D3G
