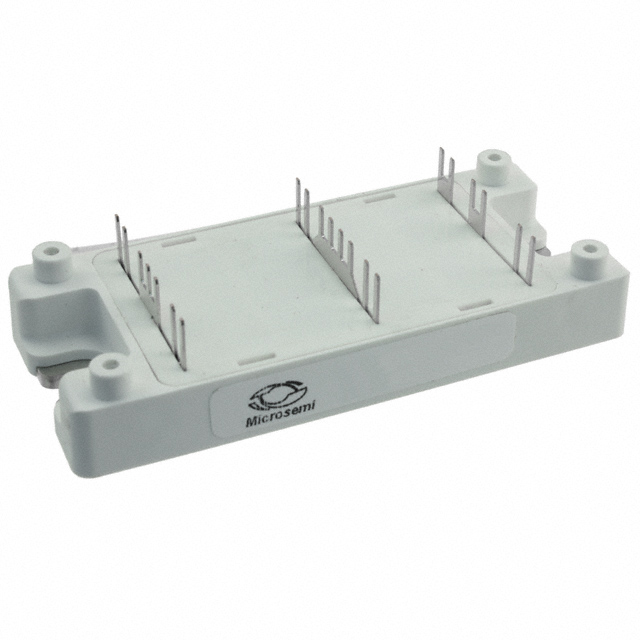

APTGF75DSK120TG
IGBT MODULE 1200V 100A 500W SP4Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology's APTGF75DSK120TG is a dual, common source NPT IGBT module designed for high-power applications. This chassis mount component offers a robust 1200V collector-emitter breakdown voltage and a maximum collector current of 100A. With a power dissipation capability of 500W, it is well-suited for demanding power conversion tasks. The module features a low Vce(on) of 3.7V at 15V Vge and 75A Ic, minimizing conduction losses. An integrated NTC thermistor aids in thermal management. The SP4 package ensures efficient heat dissipation. This IGBT module is utilized in industrial sectors such as motor drives, power supplies, and renewable energy systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP4 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Dual, Common Source |
| Operating Temperature | - |
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 75A |
| NTC Thermistor | Yes |
| Supplier Device Package | SP4 |
| IGBT Type | NPT |
| Current - Collector (Ic) (Max) | 100 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 500 W |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 5.1 nF @ 25 V |
