APTGF50H60T3G

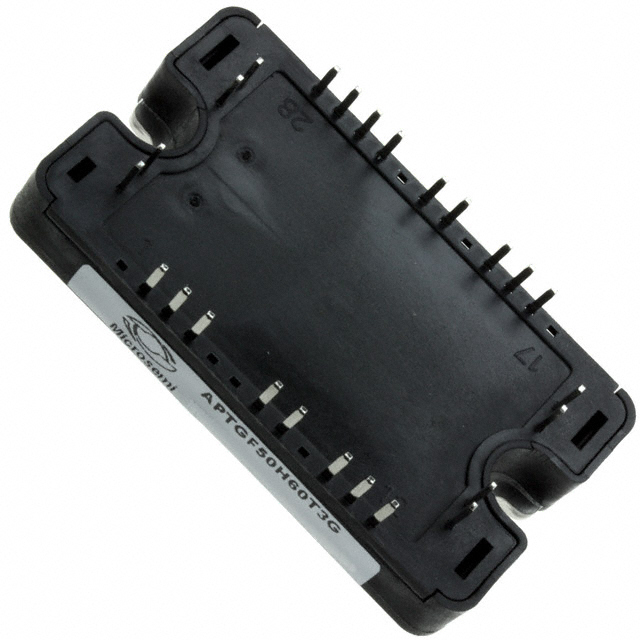

IGBT MODULE 600V 65A 250W SP3Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology's APTGF50H60T3G is an NPT IGBT module featuring a Full Bridge Inverter configuration. This chassis-mount component offers a 600V collector-emitter breakdown voltage and a maximum collector current of 65A. With a maximum power dissipation of 250W, it is suitable for demanding applications. The module includes an integrated NTC thermistor for temperature monitoring. Key electrical characteristics include a Vce(on) of 2.45V at 15V Vge and 50A Ic, and an input capacitance (Cies) of 2.2 nF at 25V. This device is utilized across various industrial sectors, including motor control and power generation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP3 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Full Bridge Inverter |
| Operating Temperature | - |
| Vce(on) (Max) @ Vge, Ic | 2.45V @ 15V, 50A |
| NTC Thermistor | Yes |
| Supplier Device Package | SP3 |
| IGBT Type | NPT |
| Current - Collector (Ic) (Max) | 65 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 250 W |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 2.2 nF @ 25 V |
