APTGF50DH60T1G

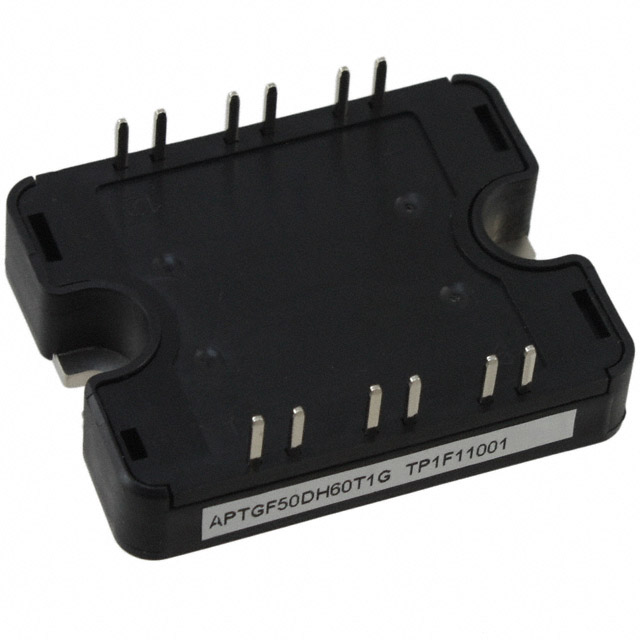

IGBT MODULE 600V 65A 250W SP1Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
The Microchip Technology APTGF50DH60T1G is an NPT asymmetrical bridge IGBT module. This component features a 600V collector-emitter breakdown voltage and a maximum continuous collector current of 65A. With a power dissipation rating of 250W, it is designed for efficient operation. The module exhibits a Vce(on) of 2.45V at 15V Vge and 50A Ic. It includes an integrated NTC thermistor for temperature monitoring. This IGBT module is suitable for high-power applications in industries such as industrial automation, power supplies, and motor drives. It is supplied in a chassis mount SP1 package, facilitating integration into robust system designs. The input capacitance (Cies) is rated at 2.2 nF at 25V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP1 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Asymmetrical Bridge |
| Operating Temperature | - |
| Vce(on) (Max) @ Vge, Ic | 2.45V @ 15V, 50A |
| NTC Thermistor | Yes |
| Supplier Device Package | SP1 |
| IGBT Type | NPT |
| Current - Collector (Ic) (Max) | 65 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 250 W |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 2.2 nF @ 25 V |
