APTGF50DDA60T3G
IGBT MODULE 600V 65A 250W SP3Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology APTGF50DDA60T3G is an NPT IGBT module featuring a Dual Boost Chopper configuration. This component is rated for 600V with a continuous collector current (Ic) of 65A and a maximum power dissipation of 250W. The module exhibits a Vce(on) of 2.45V at 15V Vge and 50A Ic, with a collector cutoff current (Ic(off)) of 250µA. Input capacitance (Cies) is specified at 2.2 nF @ 25V. Designed for chassis mounting, the SP3 package includes an integrated NTC thermistor for thermal monitoring. This device is suitable for applications in industrial motor drives and power factor correction circuits.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP3 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Dual Boost Chopper |
| Operating Temperature | - |
| Vce(on) (Max) @ Vge, Ic | 2.45V @ 15V, 50A |
| NTC Thermistor | Yes |
| Supplier Device Package | SP3 |
| IGBT Type | NPT |
| Current - Collector (Ic) (Max) | 65 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 250 W |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 2.2 nF @ 25 V |
Request a Quote
Clients Also Buy
APTGT400A120G
IGBT MODULE 1200V 560A 1785W SP6
APTGT50DH60T1G
IGBT MODULE 600V 80A 176W SP1

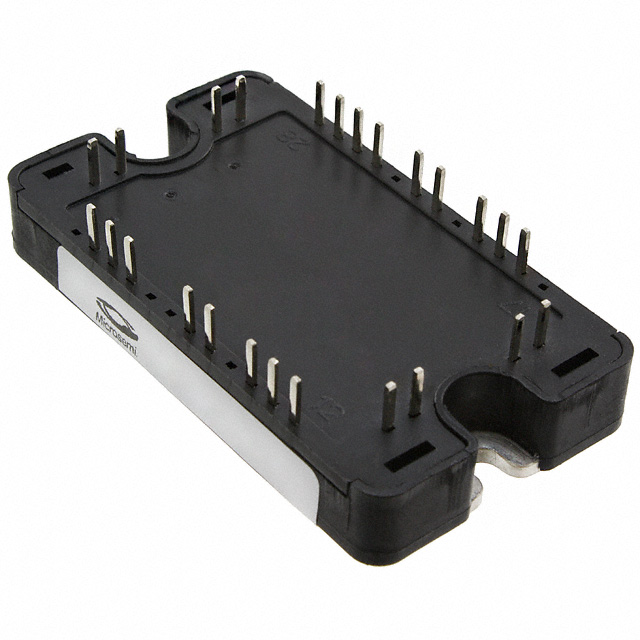

APTGF50VDA60T3G
