APTGF30H60T3G

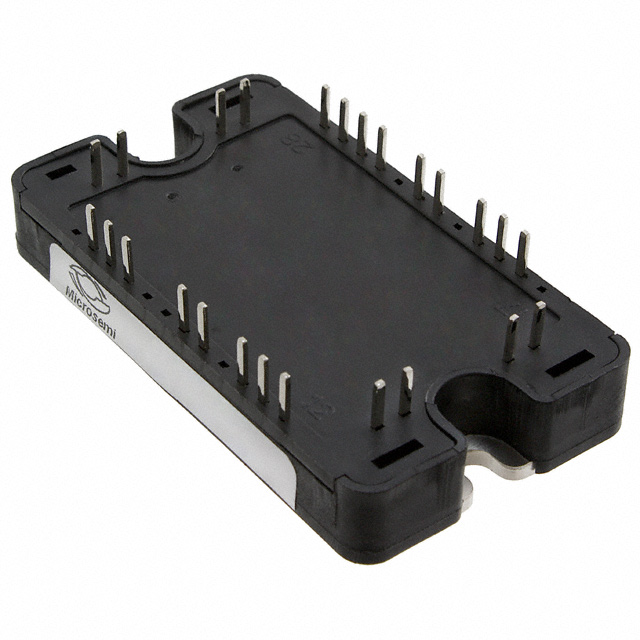

IGBT MODULE 600V 42A 140W SP3Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
The Microchip Technology APTGF30H60T3G is an NPT IGBT module featuring a Full Bridge Inverter configuration. This component is rated for a maximum collector-emitter voltage of 600 V and a continuous collector current of 42 A, with a maximum power dissipation of 140 W. The module exhibits a typical Vce(on) of 2.45 V at 15 V gate-source voltage and 30 A collector current. Input capacitance (Cies) is specified at 1.35 nF at 25 V. An integrated NTC thermistor is included for thermal monitoring. Mounting is facilitated via chassis mount. This device is commonly employed in power factor correction, industrial motor drives, and uninterruptible power supplies. The package type is SP3, supplied in Bulk.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP3 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Full Bridge Inverter |
| Operating Temperature | - |
| Vce(on) (Max) @ Vge, Ic | 2.45V @ 15V, 30A |
| NTC Thermistor | Yes |
| Supplier Device Package | SP3 |
| IGBT Type | NPT |
| Current - Collector (Ic) (Max) | 42 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 140 W |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 1.35 nF @ 25 V |
