APTGF300A120G

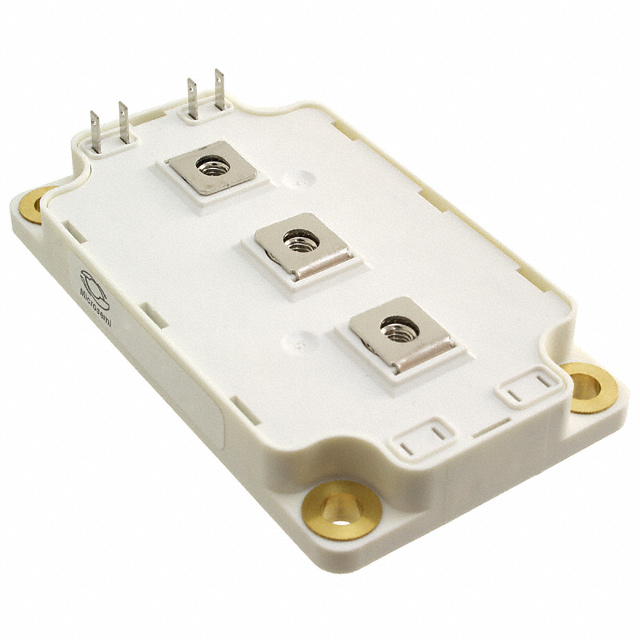

IGBT MODULE 1200V 400A 1780W SP6Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology APTGF300A120G is an NPT IGBT module featuring a half-bridge configuration, designed for high-power applications. This module offers a collector-emitter breakdown voltage of 1200V and a continuous collector current of 400A, supporting a maximum power dissipation of 1780W. Its low saturation voltage, Vce(on), is rated at 3.9V at 15V gate-emitter voltage and 300A collector current. The input capacitance (Cies) is 21 nF at 25V. This chassis-mount module, presented in the SP6 package, is suitable for demanding industrial sectors including motor drives, renewable energy systems, and electric vehicle powertrains.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP6 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | - |
| Vce(on) (Max) @ Vge, Ic | 3.9V @ 15V, 300A |
| NTC Thermistor | No |
| Supplier Device Package | SP6 |
| IGBT Type | NPT |
| Current - Collector (Ic) (Max) | 400 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 1780 W |
| Current - Collector Cutoff (Max) | 500 µA |
| Input Capacitance (Cies) @ Vce | 21 nF @ 25 V |
