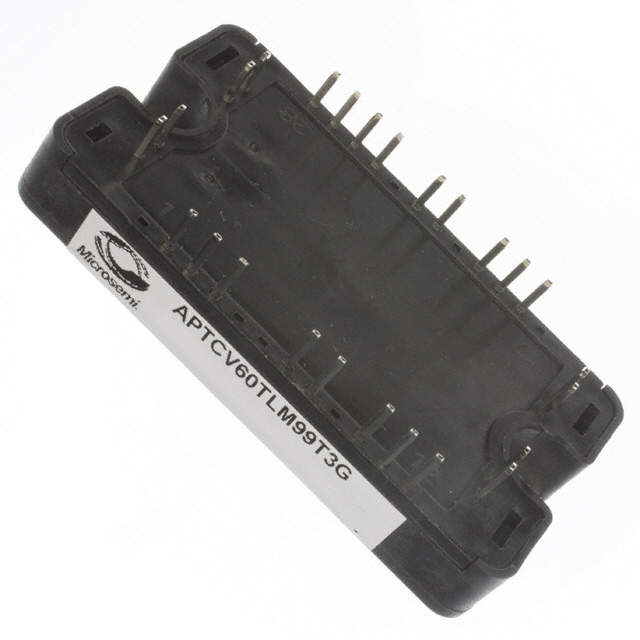

APTCV60TLM99T3G
IGBT MODULE 600V 50A 90W SP3Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology APTCV60TLM99T3G is a 600V, 50A Trench Field Stop IGBT module. This SP3 package device offers a maximum power dissipation of 90W and features a three-level inverter configuration with Trench Field Stop IGBT and FET technology. Key electrical characteristics include a Vce(on) of 1.9V at 15V Vge and 30A Ic, and an input capacitance (Cies) of 1.6 nF at 25V. The module includes an integrated NTC thermistor for thermal management and is rated for operation between -40°C and 175°C (TJ). Mounting is via chassis mount. This component is suitable for applications in industrial automation and power conversion systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP3 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter - IGBT, FET |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 30A |
| NTC Thermistor | Yes |
| Supplier Device Package | SP3 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 50 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 90 W |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 1.6 nF @ 25 V |
