APTCV60TLM70T3G

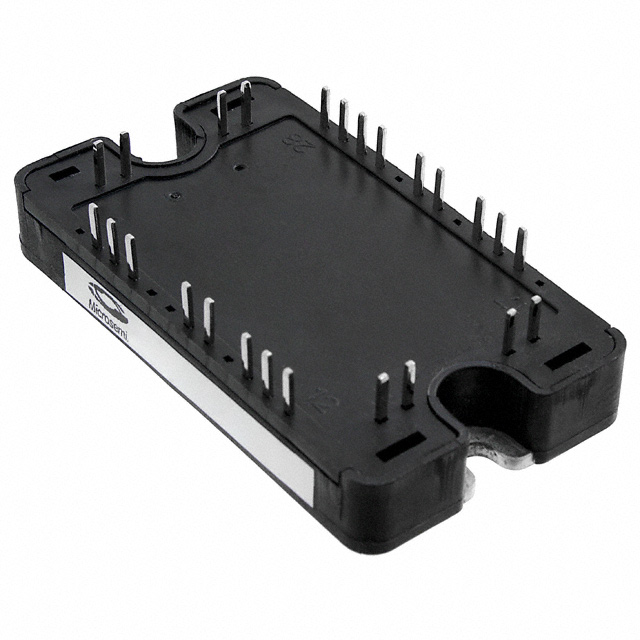

IGBT MODULE 600V 80A 176W SP3Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology APTCV60TLM70T3G is a Trench Field Stop IGBT Module designed for demanding applications. This component features a 600 V collector-emitter breakdown voltage and a maximum collector current of 80 A. With a maximum power dissipation of 176 W and a Vce(on) of 1.9V @ 15V, 50A, it offers efficient power handling. The module incorporates an NTC thermistor for thermal monitoring and operates across a wide temperature range of -40°C to 175°C (TJ). Its configuration as a Three Level Inverter with a chassis mount type makes it suitable for industrial power systems, motor drives, and renewable energy applications. The input capacitance (Cies) is rated at 3.15 nF @ 25 V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 50A |
| NTC Thermistor | Yes |
| Supplier Device Package | SP3 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 80 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 176 W |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 3.15 nF @ 25 V |
