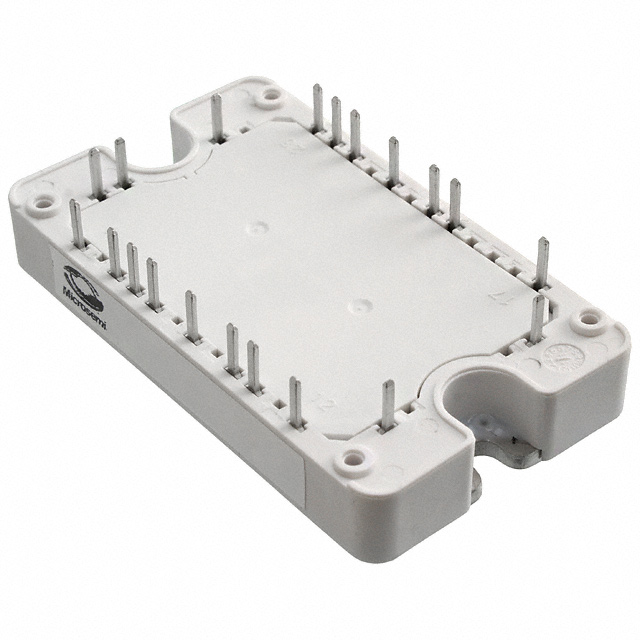

APTCV60HM45RT3G
IGBT MODULE 600V 50A 250W SP3Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology APTCV60HM45RT3G is a Trench Field Stop IGBT Module with a full bridge inverter configuration. This component offers a 600 V collector-emitter breakdown voltage and a maximum collector current of 50 A. The module is rated for 250 W maximum power dissipation and features a low Vce(on) of 1.9V at 15V Vge and 50A Ic. Input capacitance (Cies) is specified at 3.15 nF @ 25 V. Designed for robust operation, it includes an integrated NTC thermistor for thermal monitoring and operates across a wide temperature range of -40°C to 175°C (TJ). The SP3 package facilitates efficient chassis mounting. This IGBT module is suitable for applications in industrial motor drives, power supplies, and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP3 |
| Mounting Type | Chassis Mount |
| Input | Single Phase Bridge Rectifier |
| Configuration | Full Bridge Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 50A |
| NTC Thermistor | Yes |
| Supplier Device Package | SP3 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 50 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 250 W |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 3.15 nF @ 25 V |
