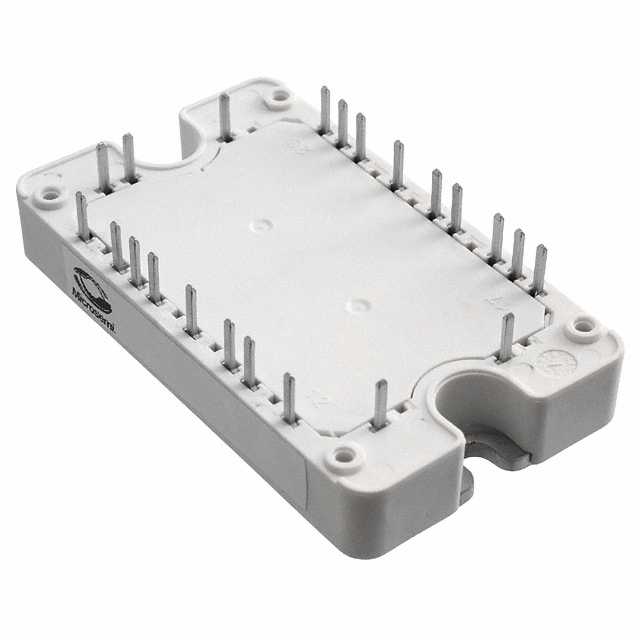

APTCV60HM45BT3G
IGBT MODULE 600V 50A 250W SP3Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology APTCV60HM45BT3G is a Trench Field Stop IGBT module featuring a Boost Chopper and Full Bridge configuration. This component offers a collector-emitter breakdown voltage of 600 V and a maximum collector current of 50 A. With a maximum power dissipation of 250 W, it is designed for efficient operation. The module exhibits a Vce(on) of 1.9V at 15V gate-emitter voltage and 50A collector current. Input capacitance (Cies) is 3.15 nF at 25V. An integrated NTC thermistor facilitates thermal monitoring. The APTCV60HM45BT3G is suitable for chassis mounting and operates within a temperature range of -40°C to 150°C. This robust module finds application in industrial power conversion, motor control, and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP3 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Boost Chopper, Full Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 50A |
| NTC Thermistor | Yes |
| Supplier Device Package | SP3 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 50 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 250 W |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 3.15 nF @ 25 V |
