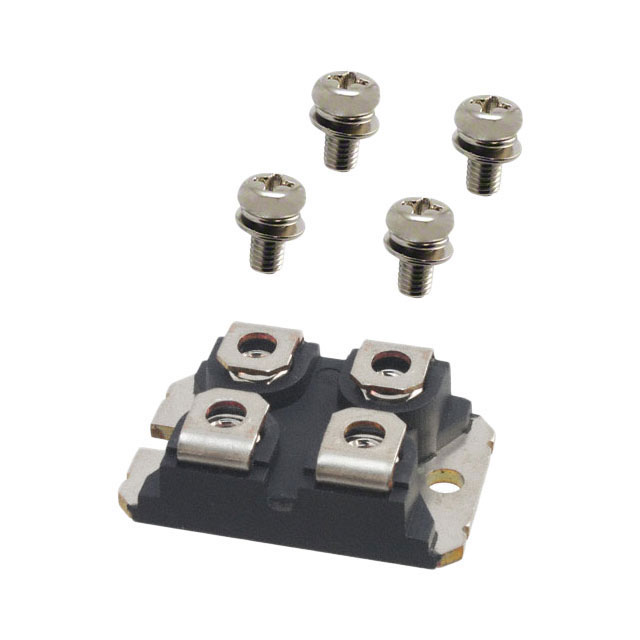

APT65GP60J
IGBT MOD 600V 130A 431W ISOTOPManufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module PT Single 600 V 130 A 431 W Chassis Mount ISOTOP®
Additional Information
Series: POWER MOS 7®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | SOT-227-4, miniBLOC |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 65A |
| NTC Thermistor | No |
| Supplier Device Package | ISOTOP® |
| IGBT Type | PT |
| Current - Collector (Ic) (Max) | 130 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 431 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 7.4 nF @ 25 V |
Request a Quote
