APT40GL120JU3
IGBT MOD 1200V 65A 220W SOT227Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology APT40GL120JU3 is a Trench Field Stop Insulated Gate Bipolar Transistor (IGBT) module. This single-configuration device offers a collector-emitter voltage (Vce) breakdown of 1200 V and a continuous collector current (Ic) rating of 65 A. The module dissipates a maximum power of 220 W. Key electrical parameters include a Vce(on) of 2.25 V at 15 V gate-emitter voltage and 35 A collector current, and an input capacitance (Cies) of 1.95 nF at 25 V. Designed for robust operation, it features a collector cutoff current (Ic) of 250 µA. The APT40GL120JU3 is packaged in a SOT-227-4, miniBLOC configuration suitable for chassis or stud mounting. It operates across an ambient temperature range of -55°C to 175°C (TJ). This component is commonly utilized in industrial motor drives, power supplies, and renewable energy inverter applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-227-4, miniBLOC |
| Mounting Type | Chassis, Stud Mount |
| Input | Standard |
| Configuration | Single |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 35A |
| NTC Thermistor | No |
| Supplier Device Package | SOT-227 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 65 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 220 W |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 1.95 nF @ 25 V |
Request a Quote
Clients Also Buy
APT100GN120JDQ4
IGBT MOD 1200V 153A 446W ISOTOP

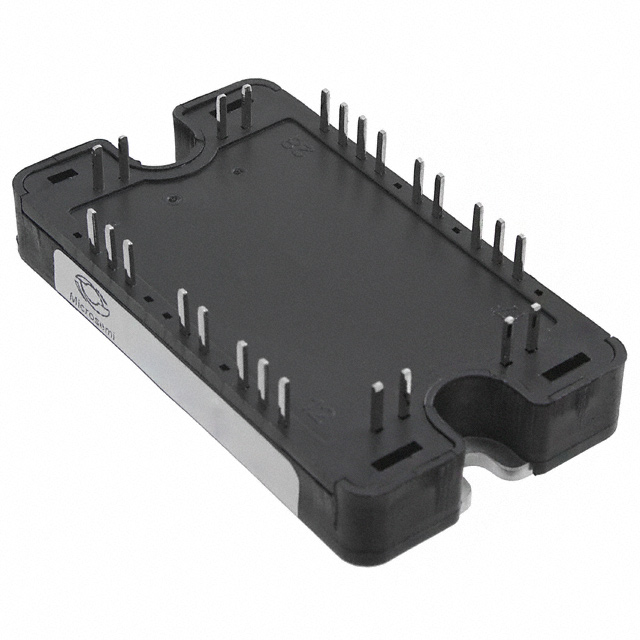

APTGT50DDA120T3G
