MIC2582-JBM
IC HOT SWAP CTRLR GP 8SOICManufacturer: Microchip Technology
Categories: Hot Swap Controllers
Quality Control: Learn More

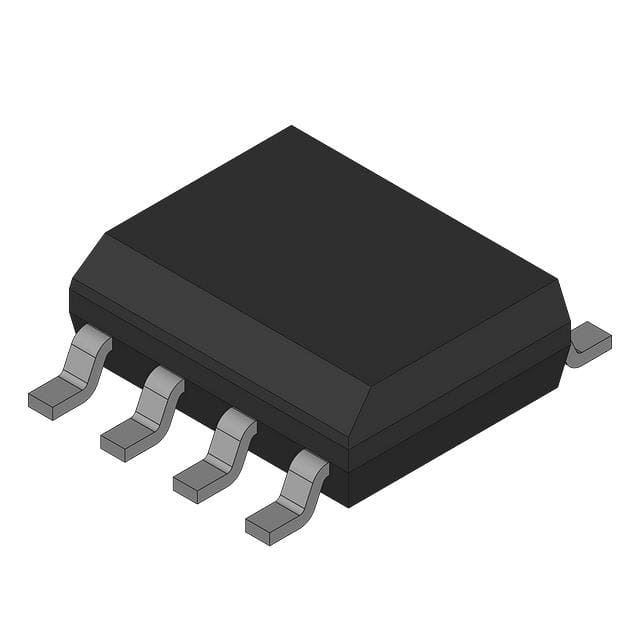

Microchip Technology's MIC2582-JBM is a single-channel, general-purpose hot-swap controller housed in an 8-SOIC package. This device facilitates safe insertion and removal of components from live backplanes, mitigating voltage transients and system disruption. Key features include programmable slew rate and undervoltage lockout (UVLO), enhancing system stability. The device operates across a wide voltage supply range of 2.3V to 13.2V with a low supply current of 1.5 mA. The MIC2582-JBM is suitable for applications in industrial control, networking, and storage systems where robust power management during hot-plug events is critical. Its surface mount design and latched fault protection further contribute to its utility in demanding electronic designs.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Latched Fault |
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Type | Hot Swap Controller |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.3V ~ 13.2V |
| Applications | General Purpose |
| Internal Switch(s) | No |
| Current - Output (Max) | - |
| Supplier Device Package | 8-SOIC |
| Programmable Features | Slew Rate, UVLO |
| Number of Channels | 1 |
| Current - Supply | 1.5 mA |
