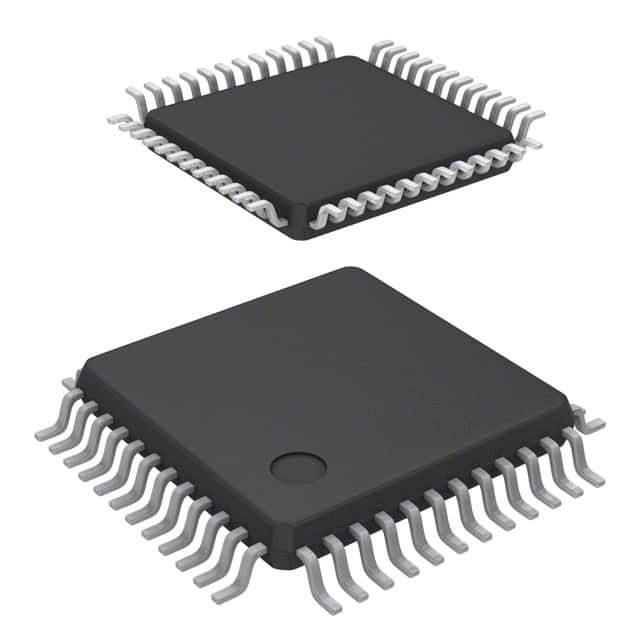

MIC2342R-2YTQ-TR
IC HOT PLUG CTRLR PCI EXP 48TQFPManufacturer: Microchip Technology
Categories: Hot Swap Controllers
Quality Control: Learn More
The Microchip Technology MIC2342R-2YTQ-TR is a 6-channel Hot Plug Controller designed for PCI Express® applications. This surface-mount device, housed in a 48-TQFP (7x7) package, offers robust power management capabilities. Key features include Auto Retry, Thermal Limit, and Under Voltage Lockout (UVLO) for enhanced system reliability. The internal switch configuration supports both pre-power and post-power insertion. Programmable features encompass Circuit Breaker functionality, Current Limit, Fault Timeout, and Slew Rate control, providing granular management of power sequencing and fault conditions. This component is suitable for demanding applications within the computing and communications industries. The MIC2342R-2YTQ-TR operates across a supply voltage range of 3V to 3.6V and 11V to 13V, supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Retry, Thermal Limit, UVLO |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TQFP |
| Mounting Type | Surface Mount |
| Type | Hot Plug Controller |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3V ~ 3.6V, 11V ~ 13V |
| Applications | PCI Express® |
| Internal Switch(s) | Both |
| Current - Output (Max) | - |
| Supplier Device Package | 48-TQFP (7x7) |
| Programmable Features | Circuit Breaker, Current Limit, Fault Timeout, Slew Rate |
| Number of Channels | 6 |
