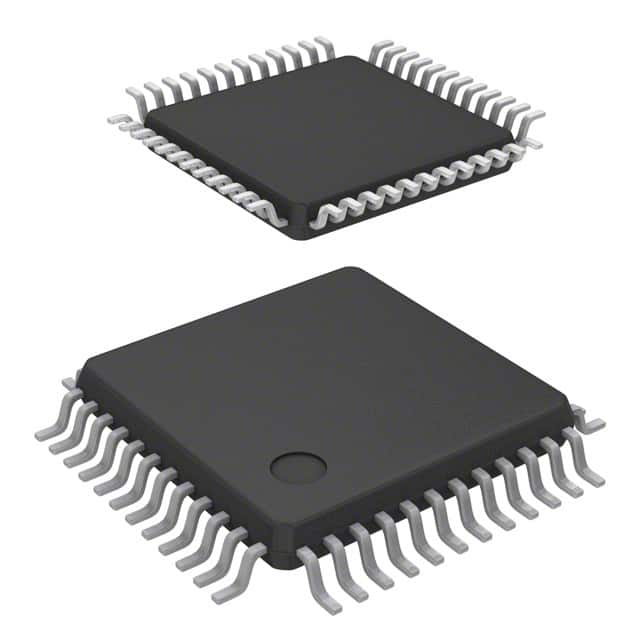

MIC2341-2YTQ-TR
IC HOT PLUG CTRLR PCI EXP 48TQFPManufacturer: Microchip Technology
Categories: Hot Swap Controllers
Quality Control: Learn More
Microchip Technology's MIC2301-2YTQ-TR is a versatile 6-channel hot plug controller designed for robust system power management. This component, housed in a 48-TQFP (7x7) package, offers advanced features including latched fault, thermal limit, and undervoltage lockout (UVLO) for enhanced device protection. The internal switches provide both hot-swapping capabilities and programmable functions such as circuit breaker, current limit, fault timeout, and slew rate control. Operating across a dual voltage supply range of 3V to 3.6V and 11V to 13V, this device is suitable for demanding applications within the PCI Express ecosystem. Its surface mount configuration and tape & reel packaging streamline integration into high-volume manufacturing processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Latched Fault, Thermal Limit, UVLO |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TQFP |
| Mounting Type | Surface Mount |
| Type | Hot Plug Controller |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3V ~ 3.6V, 11V ~ 13V |
| Applications | PCI Express® |
| Internal Switch(s) | Both |
| Current - Output (Max) | - |
| Supplier Device Package | 48-TQFP (7x7) |
| Programmable Features | Circuit Breaker, Current Limit, Fault Timeout, Slew Rate |
| Number of Channels | 6 |
