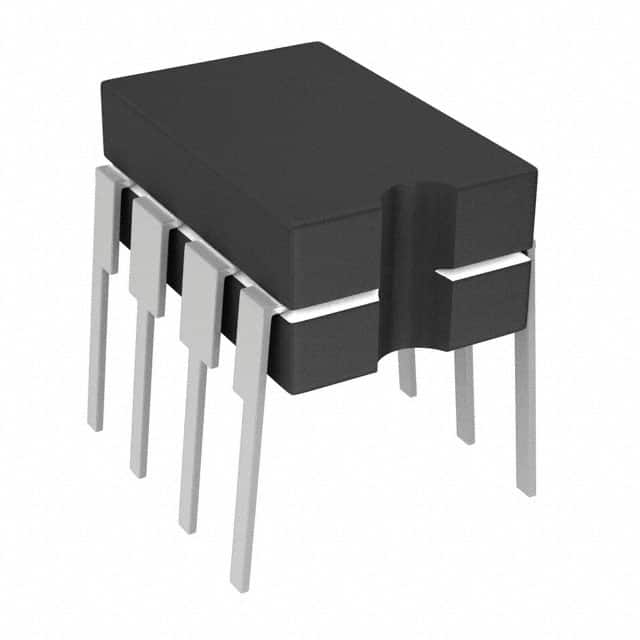

TC4627MJA
IC GATE DRVR HI/LOW SIDE 8CERDIPManufacturer: Microchip Technology
Categories: Gate Drivers
Quality Control: Learn More
Microchip Technology TC4627MJA is a single-channel, non-inverting gate driver IC designed for high-side or low-side applications. This component features a 1.5A peak output current capability for both sourcing and sinking, with typical rise and fall times of 33ns and 27ns, respectively. The TC4627MJA supports N-channel and P-channel MOSFETs and operates with a supply voltage range of 4V to 6V. Input logic levels are defined by a VIL of 0.8V and a VIH of 2.4V.
Housed in an 8-CERDIP package with a 0.300" (7.62mm) lead span, this through-hole mounted device is suitable for demanding environments, operating across a temperature range of -55°C to 125°C (TA). The TC4627MJA finds application in various industrial sectors, including automotive, power supply, and motor control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-CDIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Voltage - Supply | 4V ~ 6V |
| Input Type | Non-Inverting |
| Supplier Device Package | 8-CERDIP |
| Rise / Fall Time (Typ) | 33ns, 27ns |
| Channel Type | Single |
| Driven Configuration | High-Side or Low-Side |
| Number of Drivers | 1 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A |
| Programmable | Not Verified |
