TC4626EOE713

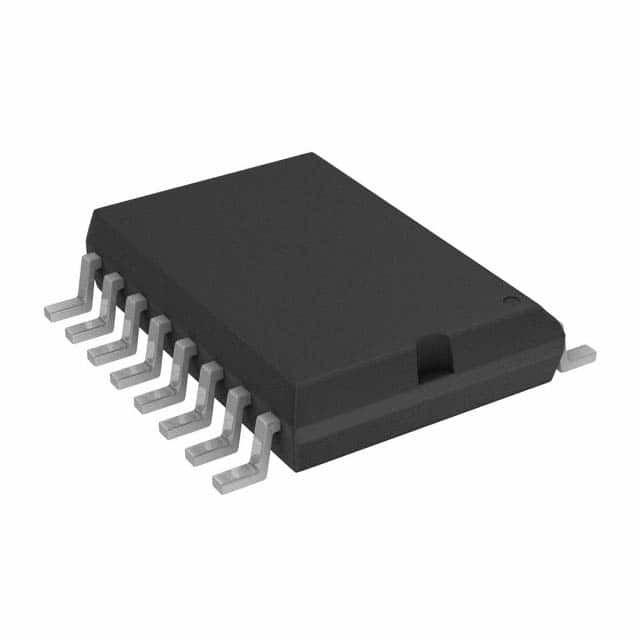

IC GATE DRVR HI/LOW SIDE 16SOICManufacturer: Microchip Technology
Categories: Gate Drivers
Quality Control: Learn More
The Microchip Technology TC4626EOE713 is a single-channel gate driver IC designed for high-side or low-side configurations. This component features an inverting input and supports both N-Channel and P-Channel MOSFETs. It delivers a peak output current of 1.5A for both source and sink operations, with typical rise and fall times of 33ns and 27ns respectively. The device operates with a supply voltage range of 4V to 6V and has logic voltage thresholds of 0.8V (VIL) and 2.4V (VIH). Packaged in a 16-SOIC (0.295", 7.50mm width) surface mount configuration, the TC4626EOE713 is suitable for operation in temperatures from -40°C to 85°C. This component is commonly utilized in power supply, motor control, and automotive applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 4V ~ 6V |
| Input Type | Inverting |
| Supplier Device Package | 16-SOIC |
| Rise / Fall Time (Typ) | 33ns, 27ns |
| Channel Type | Single |
| Driven Configuration | High-Side or Low-Side |
| Number of Drivers | 1 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A |
| Programmable | Not Verified |
