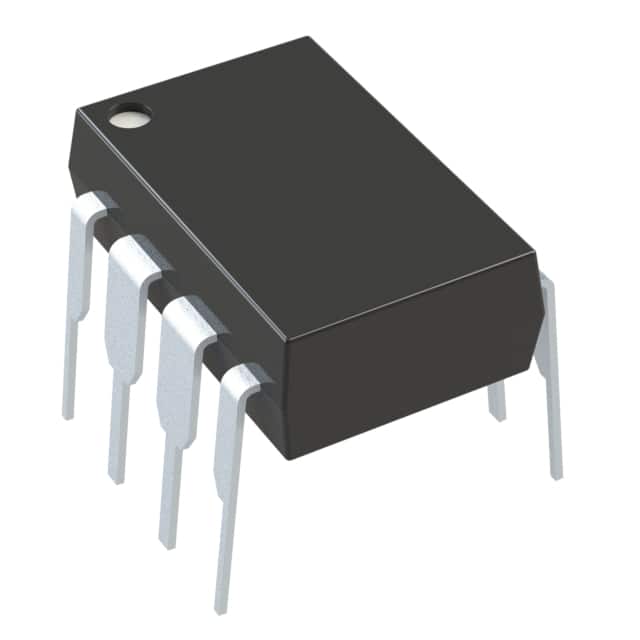

TC4626CPA
IC GATE DRVR HI/LOW SIDE 8DIPManufacturer: Microchip Technology
Categories: Gate Drivers
Quality Control: Learn More
Microchip Technology's TC4626CPA is a single-channel, inverting gate driver designed for high-side or low-side MOSFET applications. This electronic component features a robust 1.5A peak output capability for both source and sink currents, enabling efficient switching of N-channel and P-channel MOSFETs. The device operates with a supply voltage range of 4V to 6V and exhibits typical rise and fall times of 33ns and 27ns respectively. Its input logic levels are defined by a VIL of 0.8V and a VIH of 2.4V, ensuring compatibility with various control signals. The TC4626CPA is housed in a standard 8-PDIP (0.300", 7.62mm) package, suitable for through-hole mounting. This component finds application in power supply circuits, motor control, and automotive electronics, where precise and rapid gate drive is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 4V ~ 6V |
| Input Type | Inverting |
| Supplier Device Package | 8-PDIP |
| Rise / Fall Time (Typ) | 33ns, 27ns |
| Channel Type | Single |
| Driven Configuration | High-Side or Low-Side |
| Number of Drivers | 1 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A |
| Programmable | Not Verified |
