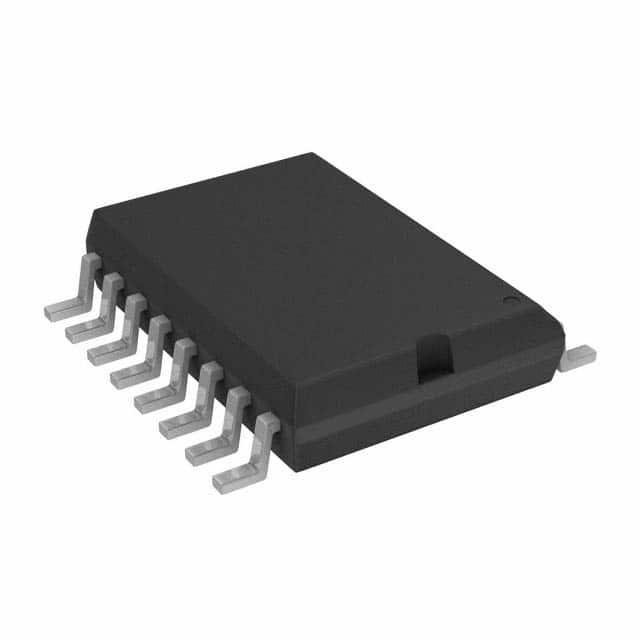

TC4626COE713
IC GATE DRVR HI/LOW SIDE 16SOICManufacturer: Microchip Technology
Categories: Gate Drivers
Quality Control: Learn More
The Microchip Technology TC4626COE713 is a single-channel, inverting gate driver featuring high-side or low-side driven configuration. This N-channel and P-channel MOSFET driver offers 1.5A peak output current for both source and sink. Operating from a 4V to 6V supply voltage, it exhibits typical rise and fall times of 33ns and 27ns respectively. Input logic thresholds are set at 0.8V (VIL) and 2.4V (VIH). The TC4626COE713 is housed in a 16-SOIC package suitable for surface mounting and is supplied on tape and reel. This component finds application in power supply and motor control systems across various industrial sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 4V ~ 6V |
| Input Type | Inverting |
| Supplier Device Package | 16-SOIC |
| Rise / Fall Time (Typ) | 33ns, 27ns |
| Channel Type | Single |
| Driven Configuration | High-Side or Low-Side |
| Number of Drivers | 1 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A |
| Programmable | Not Verified |
