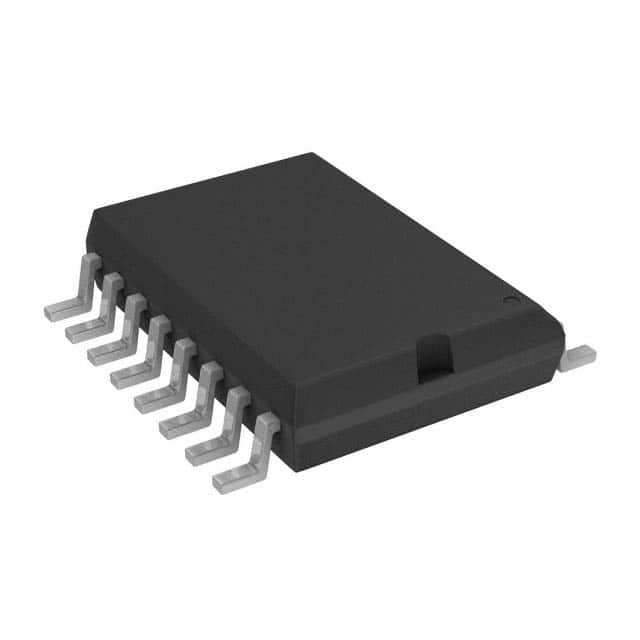

TC4626COE
IC GATE DRVR HI/LOW SIDE 16SOICManufacturer: Microchip Technology
Categories: Gate Drivers
Quality Control: Learn More
Microchip Technology TC4626COE is a single-channel, inverting gate driver IC designed for high-side or low-side MOSFET control. This component features a 16-SOIC package (0.295" width) for surface mounting. The TC4626COE delivers peak output currents of 1.5A sourcing and 1.5A sinking, with typical rise and fall times of 33ns and 27ns, respectively. It supports both N-Channel and P-Channel MOSFET gate types and operates with a supply voltage range of 4V to 6V. Input logic levels for VIL and VIH are specified at 0.8V and 2.4V. This device is suitable for applications in power supply control and motor drive circuits.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 4V ~ 6V |
| Input Type | Inverting |
| Supplier Device Package | 16-SOIC |
| Rise / Fall Time (Typ) | 33ns, 27ns |
| Channel Type | Single |
| Driven Configuration | High-Side or Low-Side |
| Number of Drivers | 1 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A |
| Programmable | Not Verified |
