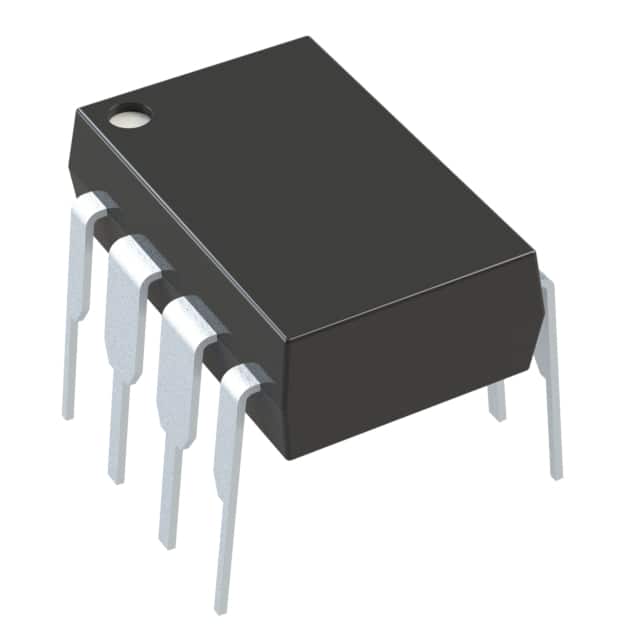

TC4421AVPA
IC GATE DRVR LOW-SIDE 8DIPManufacturer: Microchip Technology
Categories: Gate Drivers
Quality Control: Learn More
Low-Side Gate Driver IC Inverting 8-PDIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 4.5V ~ 18V |
| Input Type | Inverting |
| Supplier Device Package | 8-PDIP |
| Rise / Fall Time (Typ) | 38ns, 33ns |
| Channel Type | Single |
| Driven Configuration | Low-Side |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 10A, 10A |
| Programmable | Not Verified |
