MIC4600YML-TR
IC GATE DRVR HALF-BRIDGE 16VQFNManufacturer: Microchip Technology
Categories: Gate Drivers
Quality Control: Learn More

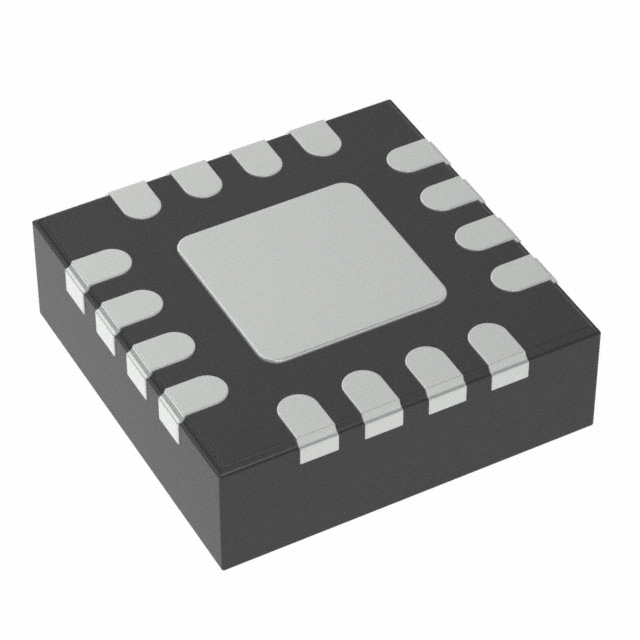

Half-Bridge Gate Driver IC Non-Inverting 16-VQFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 4.5V ~ 28V |
| Input Type | Non-Inverting |
| Supplier Device Package | 16-VQFN (3x3) |
| Rise / Fall Time (Typ) | 15ns, 13.5ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.65V, 1.4V |
| Current - Peak Output (Source, Sink) | - |
| Programmable | Not Verified |
