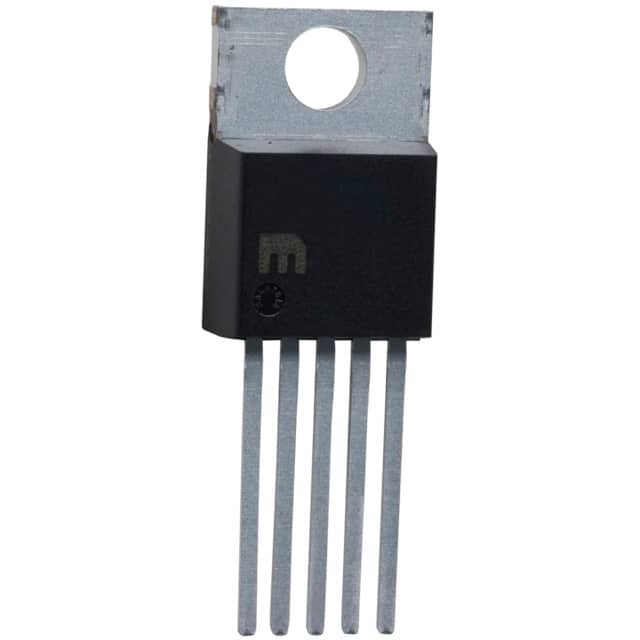

MIC4452ZT
IC GATE DRVR LOW-SIDE TO220-5Manufacturer: Microchip Technology
Categories: Gate Drivers
Quality Control: Learn More
Low-Side Gate Driver IC Non-Inverting TO-220-5
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-5 |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 4.5V ~ 18V |
| Input Type | Non-Inverting |
| Supplier Device Package | TO-220-5 |
| Rise / Fall Time (Typ) | 20ns, 24ns |
| Channel Type | Single |
| Driven Configuration | Low-Side |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 12A, 12A |
| Programmable | Not Verified |
