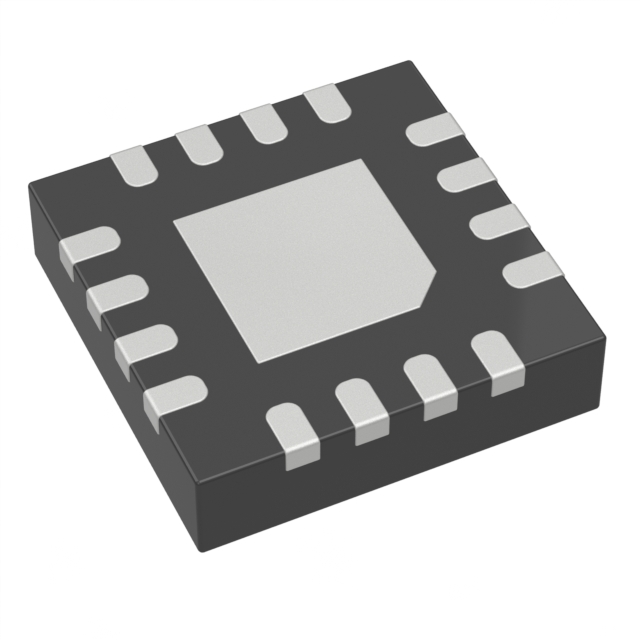

MD1822K6-G
IC GATE DRVR HALF-BRIDGE 16QFNManufacturer: Microchip Technology
Categories: Gate Drivers
Quality Control: Learn More
Half-Bridge Gate Driver IC Inverting, Non-Inverting 16-QFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Voltage - Supply | 5V ~ 10V |
| Input Type | Inverting, Non-Inverting |
| Supplier Device Package | 16-QFN (3x3) |
| Rise / Fall Time (Typ) | 7ns, 7ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 4 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.3V, 1.7V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Programmable | Not Verified |
