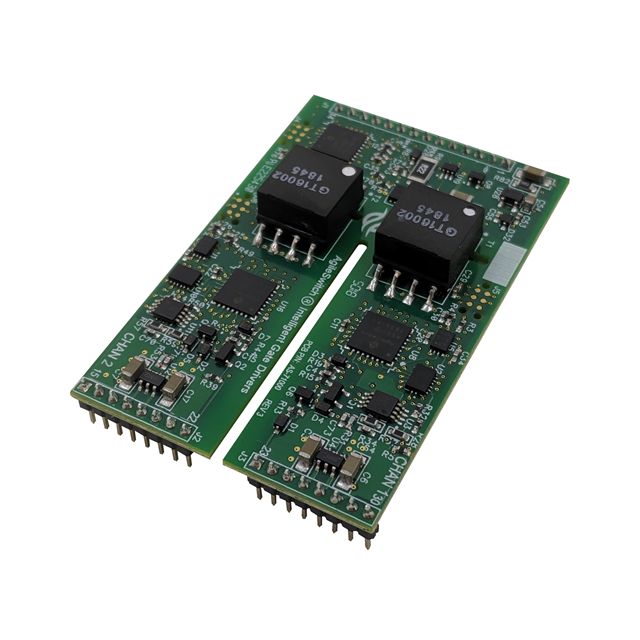

2ASC-12A1HP
IC GATE DRVR HALF-BRIDGE MODULEManufacturer: Microchip Technology
Categories: Gate Drivers
Quality Control: Learn More
Half-Bridge Gate Driver IC Non-Inverting Module
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 14V ~ 16V |
| Input Type | Non-Inverting |
| Supplier Device Package | Module |
| Rise / Fall Time (Typ) | 80ns, 90ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | P-Channel MOSFET |
| Logic Voltage - VIL, VIH | 1.25V, 3.5V |
| Current - Peak Output (Source, Sink) | 10A, 10A |
| Programmable | Verified |
Request a Quote
