T6817-TKQ

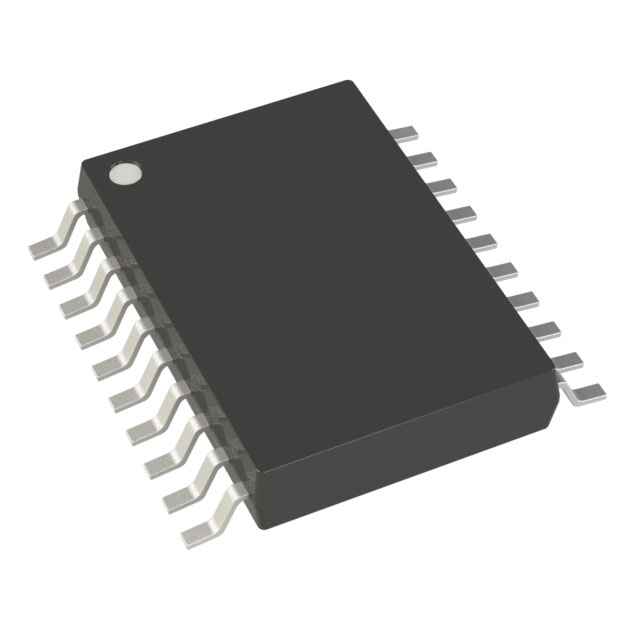

IC HALF BRIDGE DRVR 600MA 20SSOManufacturer: Microchip Technology
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The Microchip Technology T6817-TKQ is a BCDMOS half-bridge driver designed for applications in automotive lighting, DC motor control, and power resistor arrays. This device operates with a supply voltage range of 4.5V to 5.5V and can drive loads up to 40V. Each half-bridge output is capable of delivering 600mA continuous current. Key features include fault protection against ESD, open load detection, over-temperature, short circuit, and undervoltage lockout (UVLO). The T6817-TKQ also provides a status flag for monitoring operational conditions. It interfaces via SPI and is suitable for inductive, capacitive, and resistive loads. The driver is available in a 20-SSO (20-TSSOP) surface-mount package, supplied on tape and reel. It boasts typical on-resistance values of 1.5 Ohms for the low-side switch and 2 Ohms for the high-side switch. The operating temperature range is -40°C to 150°C.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Interface | SPI |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Rds On (Typ) | 1.5Ohm LS (Max), 2Ohm HS (Max) |
| Applications | Bulbs, DC Motors, Resistors |
| Current - Output / Channel | 600mA |
| Current - Peak Output | - |
| Technology | BCDMOS |
| Voltage - Load | 5.5V ~ 40V |
| Supplier Device Package | 20-SSO |
| Fault Protection | ESD, Open Load Detect, Over Temperature, Short Circuit, UVLO |
| Load Type | Inductive, Capacitive, Resistive |
Request a Quote
Clients Also Buy
U6820BM-MFP
IC HALF BRIDGE DRIVER 16SOIC
T6816-TISY

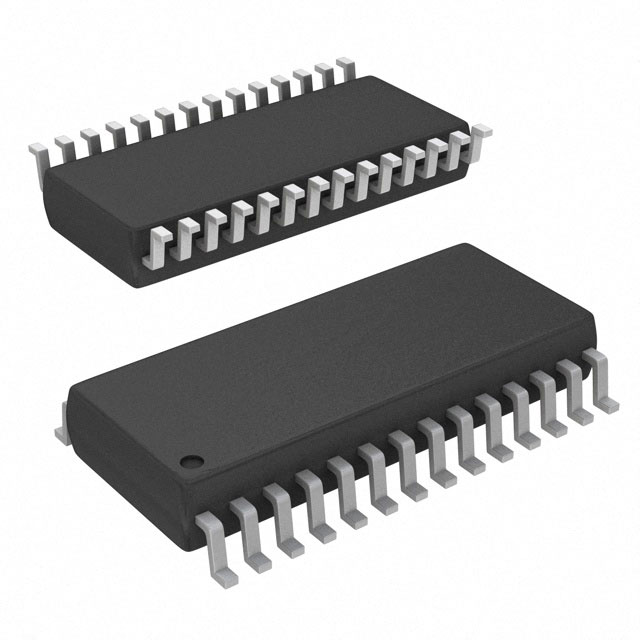

IC HALF BRIDGE DRIVER 600MA 28SO
ATA6826C-TUQY-66

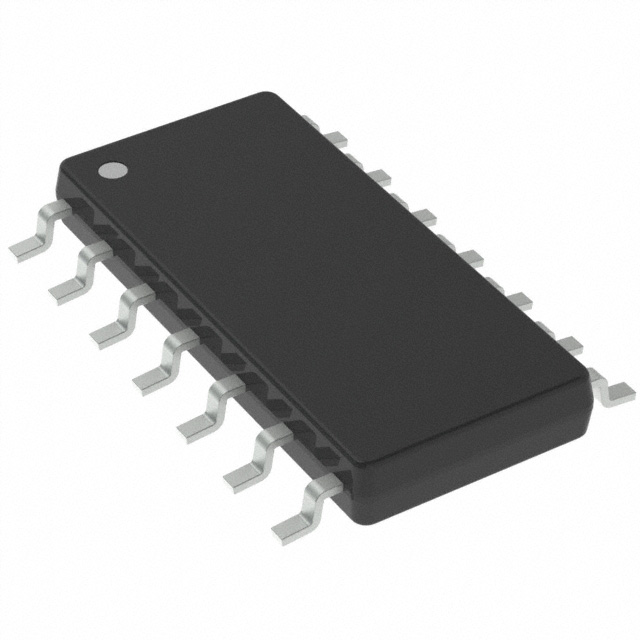

IC HALF BRIDGE DRIVER 1A 14SOIC
