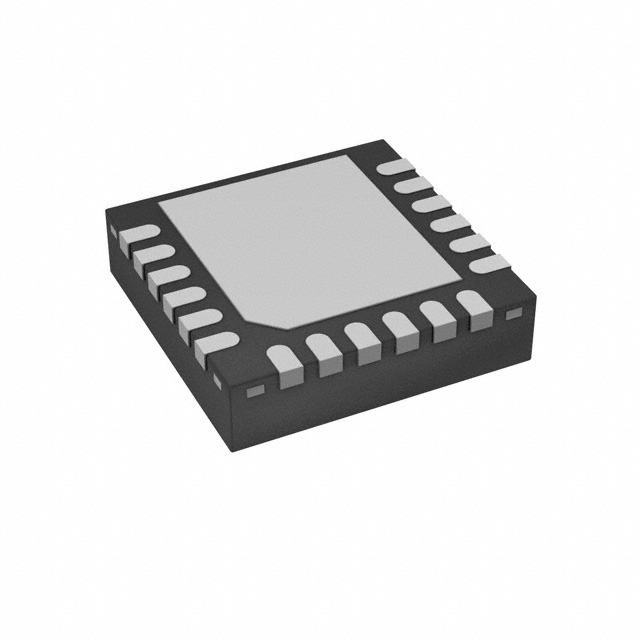

ATA6831C-PIQW-1
IC HALF BRIDGE DRIVER 1A 18QFNManufacturer: Microchip Technology
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge (3) Driver Bulbs, DC Motors, Resistors Power MOSFET 18-QFN (4x4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 18-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | PWM, SPI |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Rds On (Typ) | 800mOhm LS, 800mOhm HS |
| Applications | Bulbs, DC Motors, Resistors |
| Current - Output / Channel | 1A |
| Current - Peak Output | - |
| Technology | Power MOSFET |
| Voltage - Load | 5.6V ~ 40V |
| Supplier Device Package | 18-QFN (4x4) |
| Fault Protection | Open Load Detect, Over Temperature, Short Circuit, UVLO |
| Load Type | Inductive, Capacitive, Resistive |
