A42MX09-PQ144M
IC FPGA 95 I/O 144QFPManufacturer: Microchip Technology
Categories: FPGAs (Field Programmable Gate Array)
Quality Control: Learn More
The Microchip Technology A42MX09-PQ144M is a 42MX series Field Programmable Gate Array (FPGA) featuring 14,000 gates and 95 programmable I/O pins. This device offers 348 logic elements/cells and operates with dual voltage supply ranges of 3V to 3.6V and 4.75V to 5.25V. The A42MX09-PQ144M is housed in a 144-pin Quad Flat Pack (PQFP) package, specifically a 144-BQFP (28x28), designed for surface mounting. Its extended operating temperature range of -55°C to 125°C (TC) makes it suitable for demanding applications in industrial control, aerospace, and defense sectors. This component is supplied in trays.
Additional Information
Series: 42MXRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-BQFP |
| Mounting Type | Surface Mount |
| Number of Gates | 14000 |
| Operating Temperature | -55°C ~ 125°C (TC) |
| Voltage - Supply | 3V ~ 3.6V, 4.75V ~ 5.25V |
| Number of Logic Elements/Cells | 348 |
| Supplier Device Package | 144-PQFP (28x28) |
| Number of I/O | 95 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
A42MX09-PQ144I
IC FPGA 95 I/O 144QFP
A54SX08A-FTQG144
IC FPGA 113 I/O 144TQFP

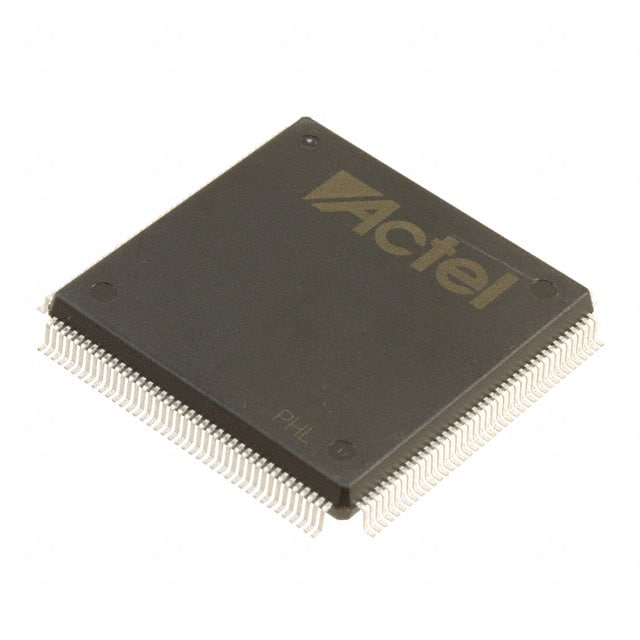

A42MX09-3PQG160I
