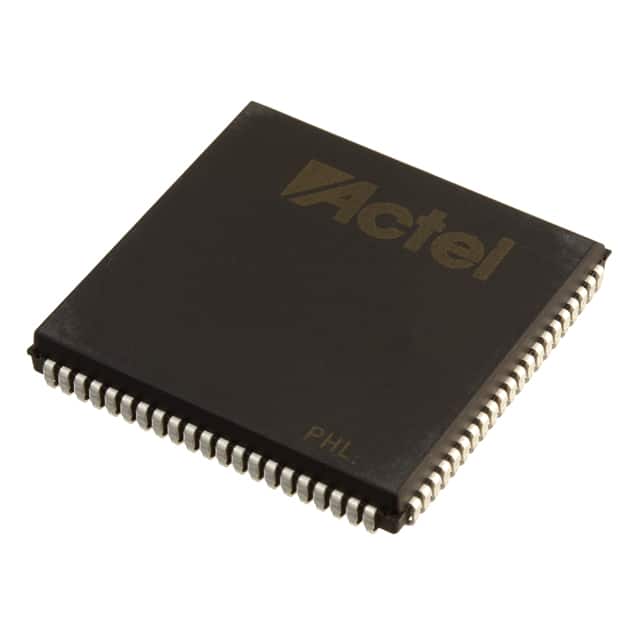

A42MX09-2PLG84
IC FPGA 72 I/O 84PLCCManufacturer: Microchip Technology
Categories: FPGAs (Field Programmable Gate Array)
Quality Control: Learn More
This Microchip Technology MX series Field Programmable Gate Array (FPGA) offers a robust solution for complex digital designs. The A42MX09-2PLG84 features 14,000 gates and 72 programmable I/O pins, housed in an 84-PLCC (J-Lead) surface-mount package. It supports dual voltage supplies, ranging from 3V to 3.6V and 4.75V to 5.25V, with an operating temperature range of 0°C to 70°C. This device is well-suited for applications in industrial control, telecommunications infrastructure, and advanced consumer electronics where high-density logic integration and flexible I/O are critical. The tray packaging ensures efficient handling for volume integration.
Additional Information
Series: MXRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: Last Time BuyPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 84-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Number of Gates | 14000 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 3V ~ 3.6V, 4.75V ~ 5.25V |
| Supplier Device Package | 84-PLCC (29.31x29.31) |
| Number of I/O | 72 |
| Programmable | Not Verified |
