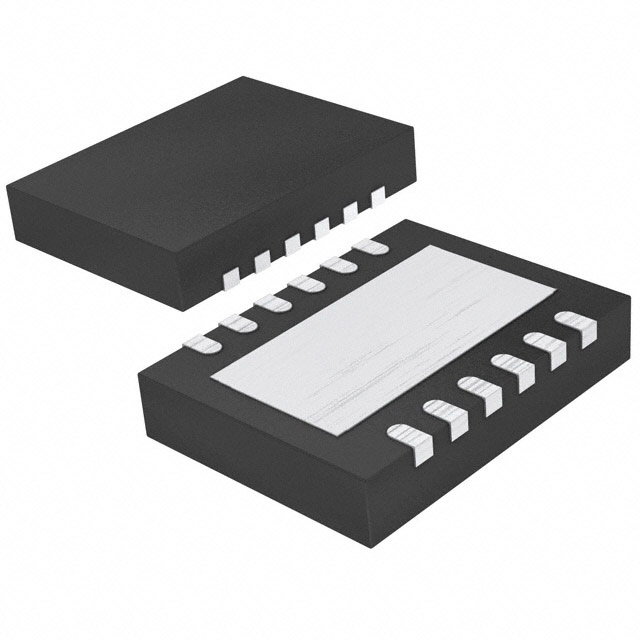

TC8220K6-G
MOSFET 2N/2P-CH 200V 12DFNManufacturer: Microchip Technology
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 200V Surface Mount 12-DFN (4x4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 5 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Configuration | 2 N and 2 P-Channel |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | - |
| Drain to Source Voltage (Vdss) | 200V |
| Current - Continuous Drain (Id) @ 25°C | - |
| Input Capacitance (Ciss) (Max) @ Vds | 56pF @ 25V, 75pF @ 25V |
| Rds On (Max) @ Id, Vgs | 6Ohm @ 1A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | - |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.4V @ 1mA |
| Supplier Device Package | 12-DFN (4x4) |
Request a Quote
Clients Also Buy
APTM20AM05FG
MOSFET 2N-CH 200V 317A SP6

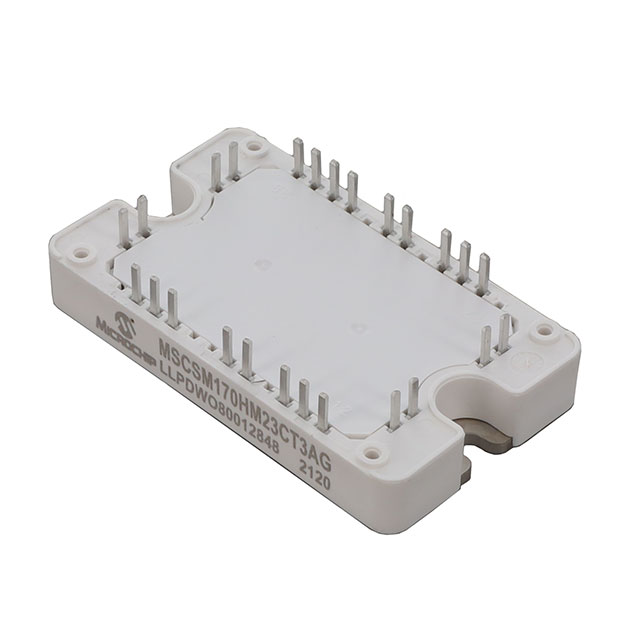

MSCSM170HM23CT3AG
