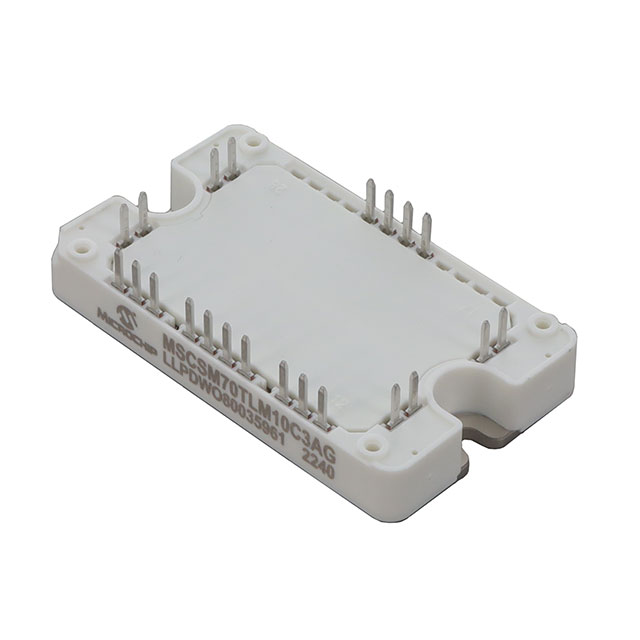

MSCSM70TLM10C3AG
SIC 4N-CH 700V 241A MODULEManufacturer: Microchip Technology
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 700V 241A (Tc) 690W (Tc) Through Hole Module
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module |
| Mounting Type | Through Hole |
| Configuration | 4 N-Channel |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Technology | Silicon Carbide (SiC) |
| Power - Max | 690W (Tc) |
| Drain to Source Voltage (Vdss) | 700V |
| Current - Continuous Drain (Id) @ 25°C | 241A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 9000pF @ 700V |
| Rds On (Max) @ Id, Vgs | 9.5mOhm @ 80A, 20V |
| Gate Charge (Qg) (Max) @ Vgs | 430nC @ 20V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.4V @ 8mA (Typ) |
| Supplier Device Package | Module |
Request a Quote
