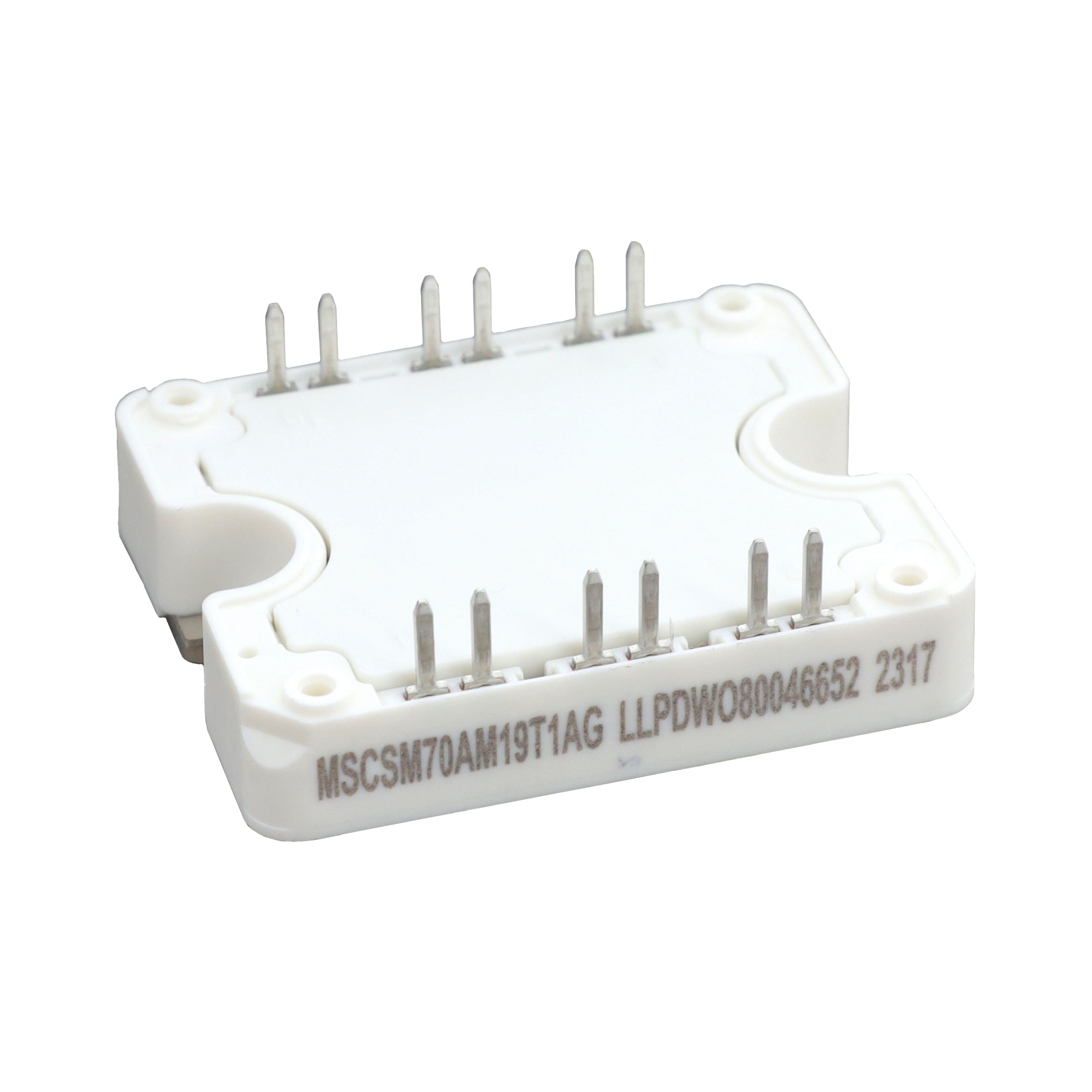

MSCSM70AM19T1AG
SIC 2N-CH 700V 124AManufacturer: Microchip Technology
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 700V 124A (Tc) 365W (Tc) Chassis Mount
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Configuration | 2 N Channel (Phase Leg) |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Technology | Silicon Carbide (SiC) |
| Power - Max | 365W (Tc) |
| Drain to Source Voltage (Vdss) | 700V |
| Current - Continuous Drain (Id) @ 25°C | 124A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 4500pF @ 700V |
| Rds On (Max) @ Id, Vgs | 19mOhm @ 40A, 20V |
| Gate Charge (Qg) (Max) @ Vgs | 215nC @ 20V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.4V @ 4mA |
| Supplier Device Package | - |
Request a Quote
