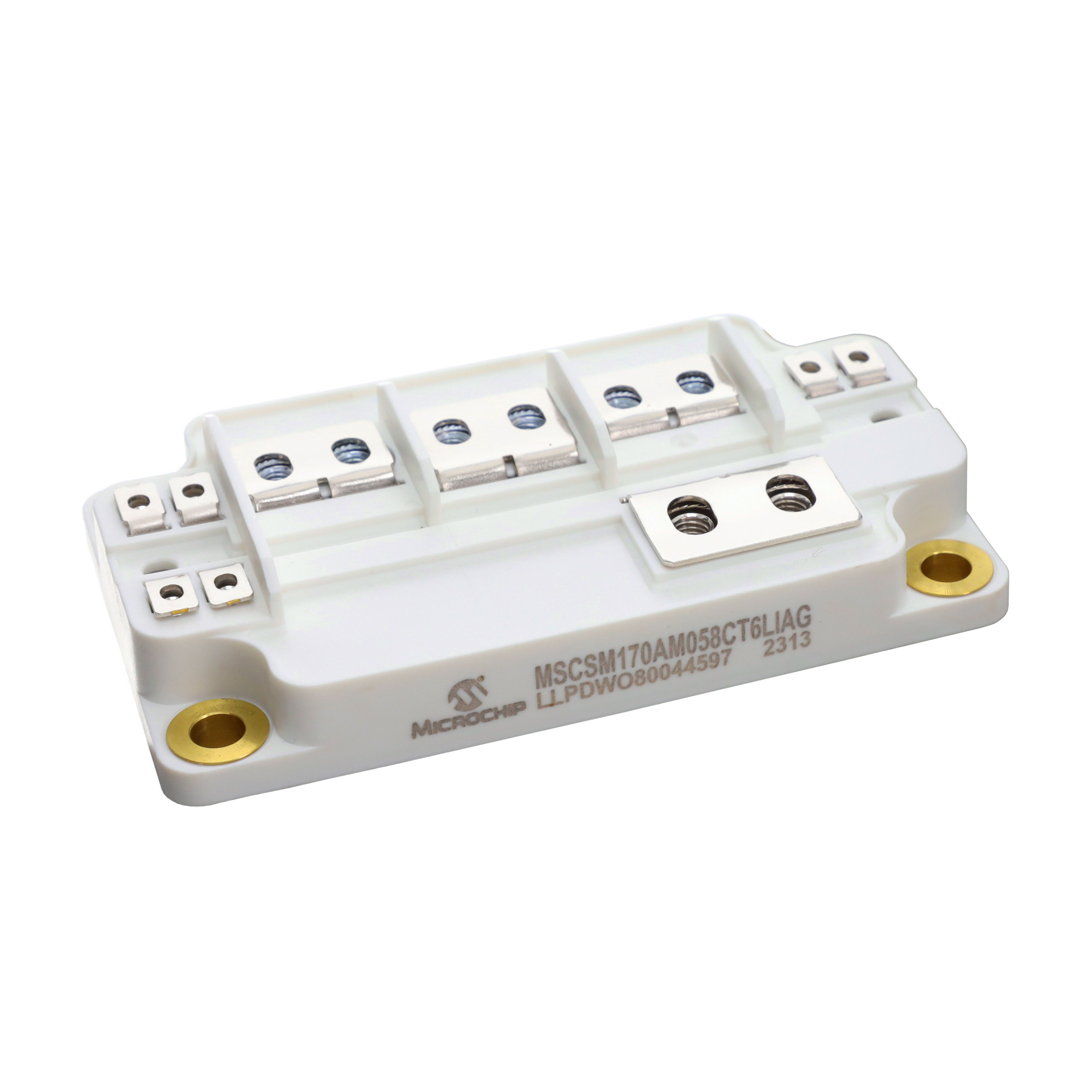

MSCSM170AM058CT6LIAG
SIC 2N-CH 1700V 353AManufacturer: Microchip Technology
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 1700V (1.7kV) 353A (Tc) 1.642kW (Tc) Chassis Mount
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Configuration | 2 N Channel (Phase Leg) |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Technology | Silicon Carbide (SiC) |
| Power - Max | 1.642kW (Tc) |
| Drain to Source Voltage (Vdss) | 1700V (1.7kV) |
| Current - Continuous Drain (Id) @ 25°C | 353A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 19800pF @ 1000V |
| Rds On (Max) @ Id, Vgs | 7.5mOhm @ 180A, 20V |
| Gate Charge (Qg) (Max) @ Vgs | 1068nC @ 20V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 3.3V @ 15mA |
| Supplier Device Package | - |
Request a Quote
