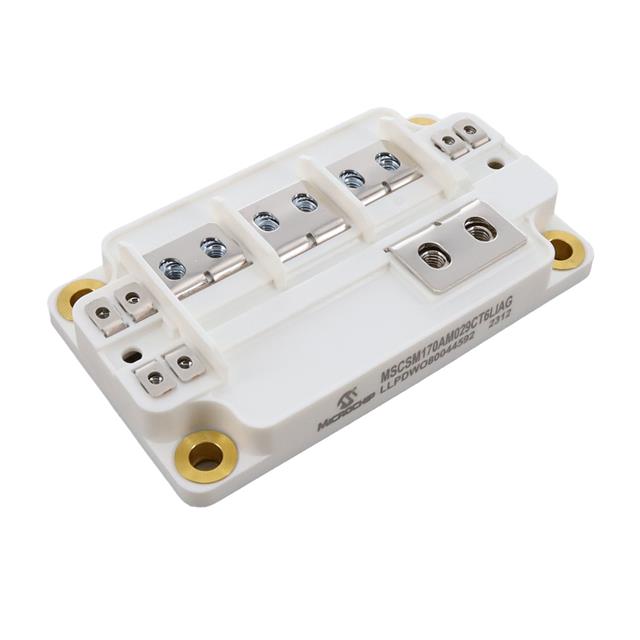

MSCSM170AM029CT6LIAG
SIC 2N-CH 1700V 676AManufacturer: Microchip Technology
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 1700V (1.7kV) 676A (Tc) 3kW (Tc) Chassis Mount
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Configuration | 2 N Channel (Phase Leg) |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Technology | Silicon Carbide (SiC) |
| Power - Max | 3kW (Tc) |
| Drain to Source Voltage (Vdss) | 1700V (1.7kV) |
| Current - Continuous Drain (Id) @ 25°C | 676A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 39600pF @ 1000V |
| Rds On (Max) @ Id, Vgs | 3.75mOhm @ 360A, 20V |
| Gate Charge (Qg) (Max) @ Vgs | 2136nC @ 20V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 3.3V @ 30mA |
| Supplier Device Package | - |
