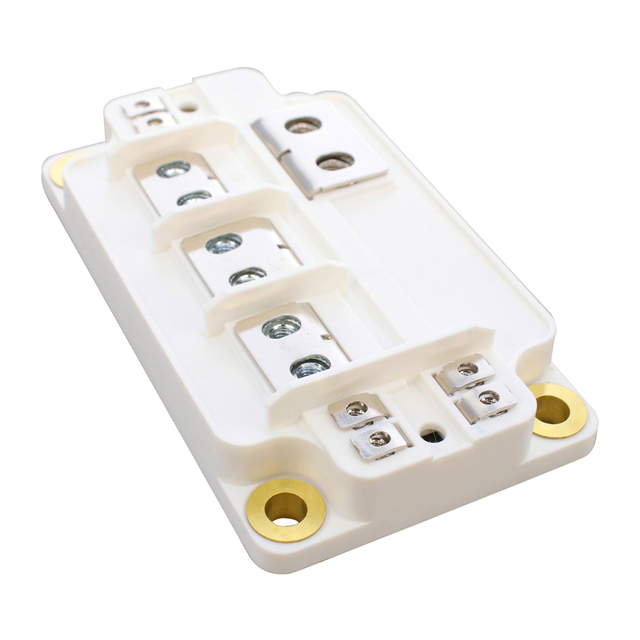

MSCSM120AM03CT6LIAG
SIC 2N-CH 1200V 805A SP6C LIManufacturer: Microchip Technology
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 1200V (1.2kV) 805A (Tc) 3.215kW (Tc) Chassis Mount SP6C LI
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Configuration | 2 N Channel (Phase Leg) |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Technology | Silicon Carbide (SiC) |
| Power - Max | 3.215kW (Tc) |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Current - Continuous Drain (Id) @ 25°C | 805A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 30200pF @ 1kV |
| Rds On (Max) @ Id, Vgs | 3.1mOhm @ 400A, 20V |
| Gate Charge (Qg) (Max) @ Vgs | 2320nC @ 20V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.8V @ 10mA |
| Supplier Device Package | SP6C LI |
