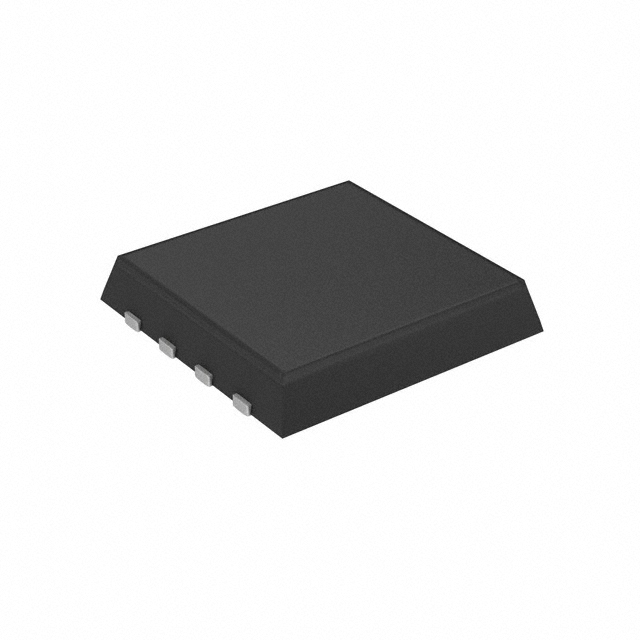

DN2625DK6-G
MOSFET 2N-CH 250V 1.1A 8DFNManufacturer: Microchip Technology
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 250V 1.1A Surface Mount 8-DFN (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 8-VDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | - |
| Drain to Source Voltage (Vdss) | 250V |
| Current - Continuous Drain (Id) @ 25°C | 1.1A |
| Input Capacitance (Ciss) (Max) @ Vds | 1000pF @ 25V |
| Rds On (Max) @ Id, Vgs | 3.5Ohm @ 1A, 0V |
| Gate Charge (Qg) (Max) @ Vgs | 7.04nC @ 1.5V |
| FET Feature | Depletion Mode |
| Vgs(th) (Max) @ Id | - |
| Supplier Device Package | 8-DFN (5x5) |
