APTMC60TL11CT3AG
MOSFET 4N-CH 1200V 28A SP3Manufacturer: Microchip Technology
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 1200V (1.2kV) 28A (Tc) 125W Chassis Mount SP3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP3 |
| Mounting Type | Chassis Mount |
| Configuration | 4 N-Channel (Three Level Inverter) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | Silicon Carbide (SiC) |
| Power - Max | 125W |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Current - Continuous Drain (Id) @ 25°C | 28A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 950pF @ 1000V |
| Rds On (Max) @ Id, Vgs | 98mOhm @ 20A, 20V |
| Gate Charge (Qg) (Max) @ Vgs | 49nC @ 20V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.2V @ 1mA |
| Supplier Device Package | SP3 |
Request a Quote
Clients Also Buy

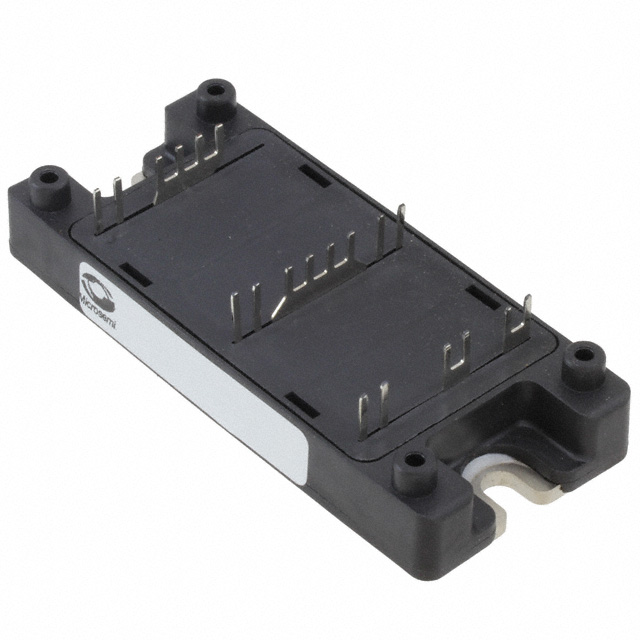

APTC60VDAM24T3G
MOSFET 2N-CH 600V 95A SP3

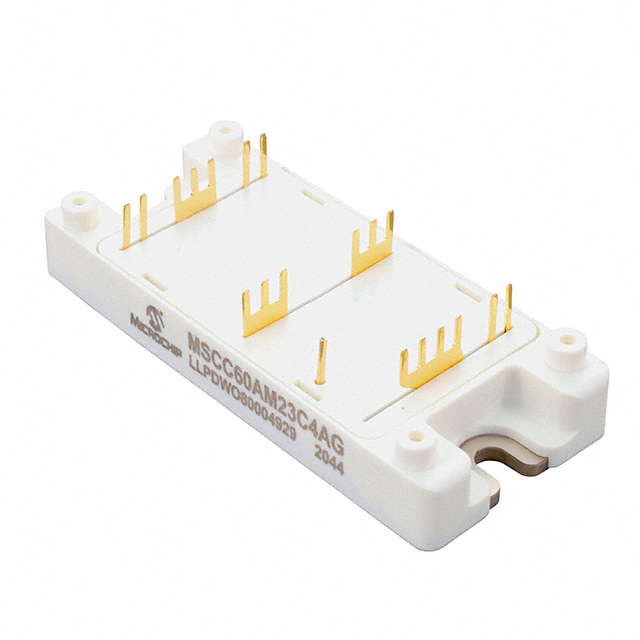

MSCM20AM058G
