APTM10DUM02G
MOSFET 2N-CH 100V 495A SP6Manufacturer: Microchip Technology
Categories: FET, MOSFET Arrays
Quality Control: Learn More

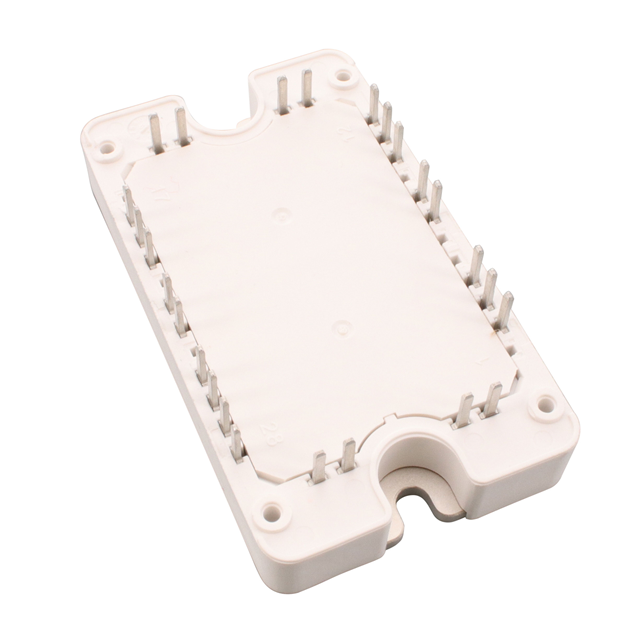

Mosfet Array 100V 495A 1250W Chassis Mount SP6
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP6 |
| Mounting Type | Chassis Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1250W |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 495A |
| Input Capacitance (Ciss) (Max) @ Vds | 40000pF @ 25V |
| Rds On (Max) @ Id, Vgs | 2.5mOhm @ 200A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 1360nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 4V @ 10mA |
| Supplier Device Package | SP6 |
