APTM100H18FG
MOSFET 4N-CH 1000V 43A SP6Manufacturer: Microchip Technology
Categories: FET, MOSFET Arrays
Quality Control: Learn More

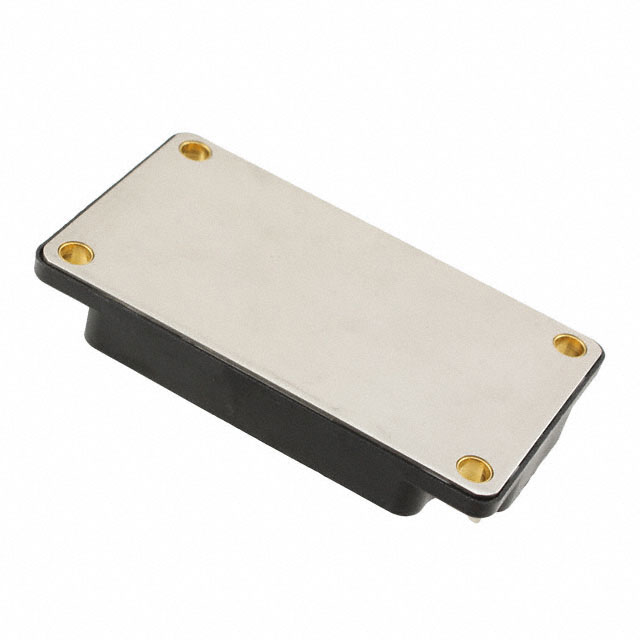

Microchip Technology APTM100H18FG is a 1000V (1kV) 4-N-channel MOSFET array with a continuous drain current of 43A at 25°C. This device, housed in an SP6 chassis mount package, offers a maximum power dissipation of 780W. Key electrical characteristics include a low Rds(on) of 210mOhm at 21.5A and 10V, and a gate charge (Qg) of 372nC at 10V. Input capacitance (Ciss) is specified as 10400pF maximum at 25V. The operating temperature range is -40°C to 150°C (TJ). This MOSFET array is suitable for high-voltage switching applications across power supply, industrial motor control, and renewable energy sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP6 |
| Mounting Type | Chassis Mount |
| Configuration | 4 N-Channel (Full Bridge) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 780W |
| Drain to Source Voltage (Vdss) | 1000V (1kV) |
| Current - Continuous Drain (Id) @ 25°C | 43A |
| Input Capacitance (Ciss) (Max) @ Vds | 10400pF @ 25V |
| Rds On (Max) @ Id, Vgs | 210mOhm @ 21.5A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 372nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 5V @ 5mA |
| Supplier Device Package | SP6 |
