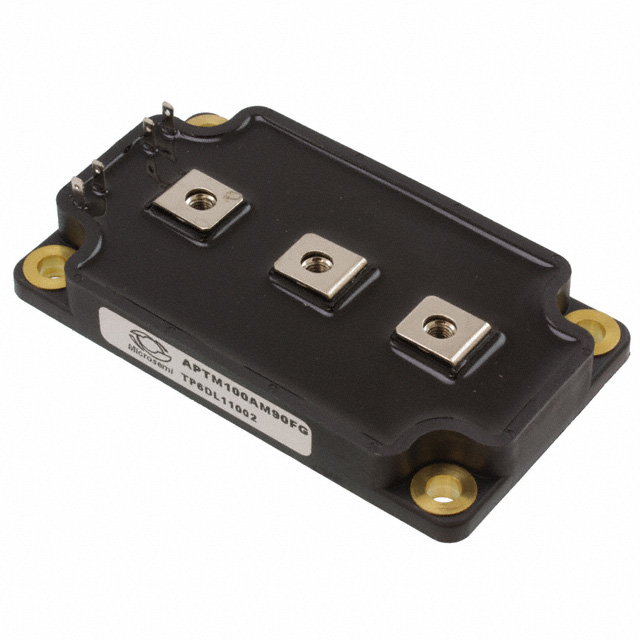

APTM100AM90FG
MOSFET 2N-CH 1000V 78A SP6Manufacturer: Microchip Technology
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Microchip Technology APTM100AM90FG is a 1000V (1kV) 2-channel N-channel MOSFET array with a continuous drain current of 78A per channel at 25°C. This chassis-mount device, packaged in the SP6, offers a maximum power dissipation of 1250W. Key electrical characteristics include a maximum on-resistance (Rds On) of 105mOhm at 39A and 10V, an input capacitance (Ciss) of 20700pF at 25V, and a gate charge (Qg) of 744nC at 10V. The threshold voltage (Vgs(th)) is a maximum of 5V at 10mA. Operating temperature ranges from -40°C to 150°C. This component is suitable for applications in power conversion, motor control, and industrial power systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP6 |
| Mounting Type | Chassis Mount |
| Configuration | 2 N-Channel (Half Bridge) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1250W |
| Drain to Source Voltage (Vdss) | 1000V (1kV) |
| Current - Continuous Drain (Id) @ 25°C | 78A |
| Input Capacitance (Ciss) (Max) @ Vds | 20700pF @ 25V |
| Rds On (Max) @ Id, Vgs | 105mOhm @ 39A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 744nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 5V @ 10mA |
| Supplier Device Package | SP6 |
