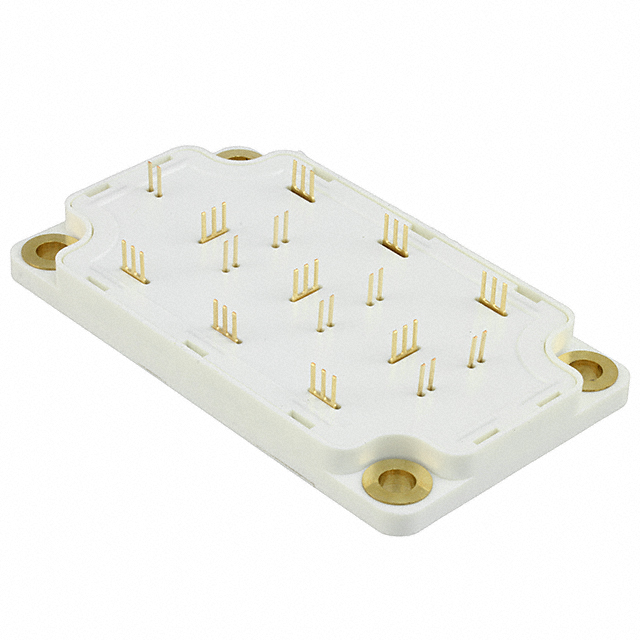

APTC60TAM24TPG
MOSFET 6N-CH 600V 95A SP6-PManufacturer: Microchip Technology
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Microchip Technology's APTC60TAM24TPG is a 600V, 6-channel N-channel MOSFET array within the CoolMOS™ series, featuring a 3-phase bridge configuration. This component offers a continuous drain current of 95A at 25°C, with a low on-resistance of 24mOhm at 47.5A and 10V. The device boasts a maximum power dissipation of 462W and a gate charge of 300nC at 10V. Input capacitance (Ciss) is rated at 14400pF at 25V. The APTC60TAM24TPG is designed for chassis mounting in the SP6-P package. Operating temperature ranges from -40°C to 150°C (TJ). This component is commonly utilized in power factor correction (PFC), solar inverters, and industrial power supplies.
Additional Information
Series: CoolMOS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | SP6 |
| Mounting Type | Chassis Mount |
| Configuration | 6 N-Channel (3-Phase Bridge) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 462W |
| Drain to Source Voltage (Vdss) | 600V |
| Current - Continuous Drain (Id) @ 25°C | 95A |
| Input Capacitance (Ciss) (Max) @ Vds | 14400pF @ 25V |
| Rds On (Max) @ Id, Vgs | 24mOhm @ 47.5A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 300nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 3.9V @ 5mA |
| Supplier Device Package | SP6-P |
