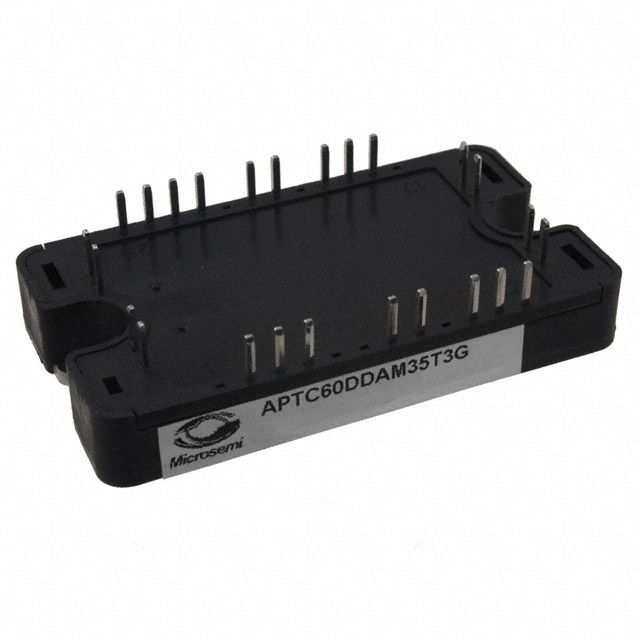

APTC60DDAM35T3G
MOSFET 2N-CH 600V 72A SP3Manufacturer: Microchip Technology
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 600V 72A 416W Chassis Mount SP3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP3 |
| Mounting Type | Chassis Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 416W |
| Drain to Source Voltage (Vdss) | 600V |
| Current - Continuous Drain (Id) @ 25°C | 72A |
| Input Capacitance (Ciss) (Max) @ Vds | 14000pF @ 25V |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 72A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 518nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 3.9V @ 5.4mA |
| Supplier Device Package | SP3 |
