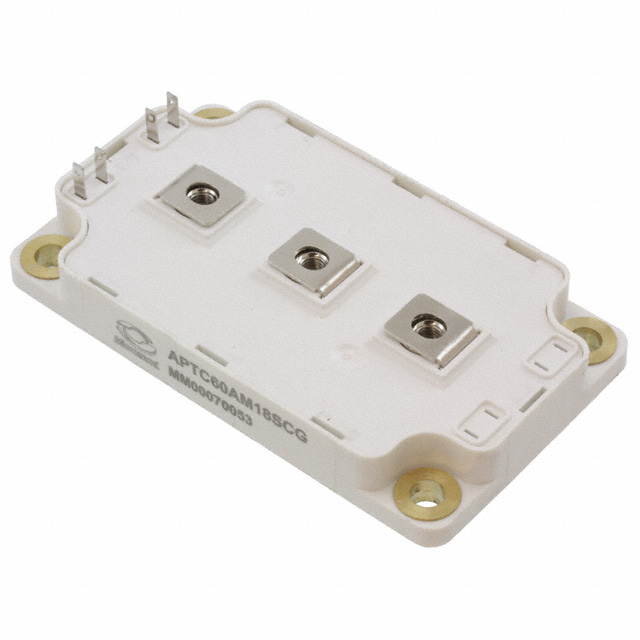

APTC60AM18SCG
MOSFET 2N-CH 600V 143A SP6Manufacturer: Microchip Technology
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Microchip Technology APTC60AM18SCG is a 600V, 143A 2-channel N-channel MOSFET array from the CoolMOS™ series, featuring an 18mOhm Rds(on) at 71.5A and 10V Vgs. This chassis mount device, packaged in SP6, offers a maximum power dissipation of 833W and a continuous drain current of 143A. Key parameters include a gate charge of 1036nC at 10V and input capacitance of 28000pF at 25V. Operating across a temperature range of -40°C to 150°C, this MOSFET array is suitable for high-power applications in industries such as industrial power supplies, electric vehicle charging, and renewable energy systems.
Additional Information
Series: CoolMOS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP6 |
| Mounting Type | Chassis Mount |
| Configuration | 2 N-Channel (Half Bridge) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 833W |
| Drain to Source Voltage (Vdss) | 600V |
| Current - Continuous Drain (Id) @ 25°C | 143A |
| Input Capacitance (Ciss) (Max) @ Vds | 28000pF @ 25V |
| Rds On (Max) @ Id, Vgs | 18mOhm @ 71.5A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 1036nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 3.9V @ 4mA |
| Supplier Device Package | SP6 |
Request a Quote
