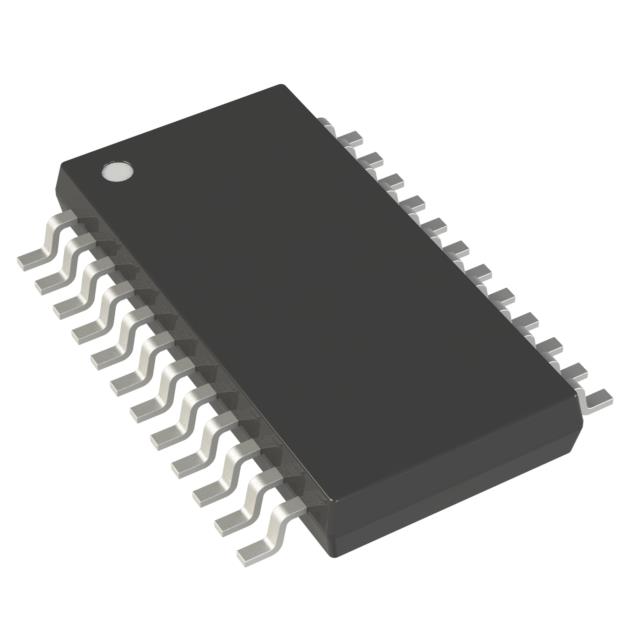

MCP3906T-I/SS
IC ENERGY METERING 24SSOPManufacturer: Microchip Technology
Categories: Energy Metering
Quality Control: Learn More
Microchip Technology MCP3906T-I-SS is a single-phase energy metering IC. This component features a high-precision delta-sigma analog-to-digital converter (ADC) with an integrated digital core for comprehensive energy measurement. Designed for surface mount applications, it comes in a 24-SSOP package and operates with a supply voltage range of 4.5V to 5.5V. The device exhibits a low current consumption of 2.7mA and an input impedance of 390kOhm. It offers a measurement error of 0.1%, ensuring accurate monitoring of energy consumption. The operating temperature range is -40°C to 85°C. This IC is suitable for use in smart metering, industrial power monitoring, and power quality analysis applications. The output is provided on a Tape & Reel (TR) for efficient manufacturing processes.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 2.7mA |
| Measurement Error | 0.1% |
| Input Impedance | 390kOhm |
| Voltage - I/O High | 2.4V |
| Voltage - I/O Low | 0.85V |
| Meter Type | Single Phase |
| Supplier Device Package | 24-SSOP |
| Voltage - Supply | 4.5 V ~ 5.5 V |
